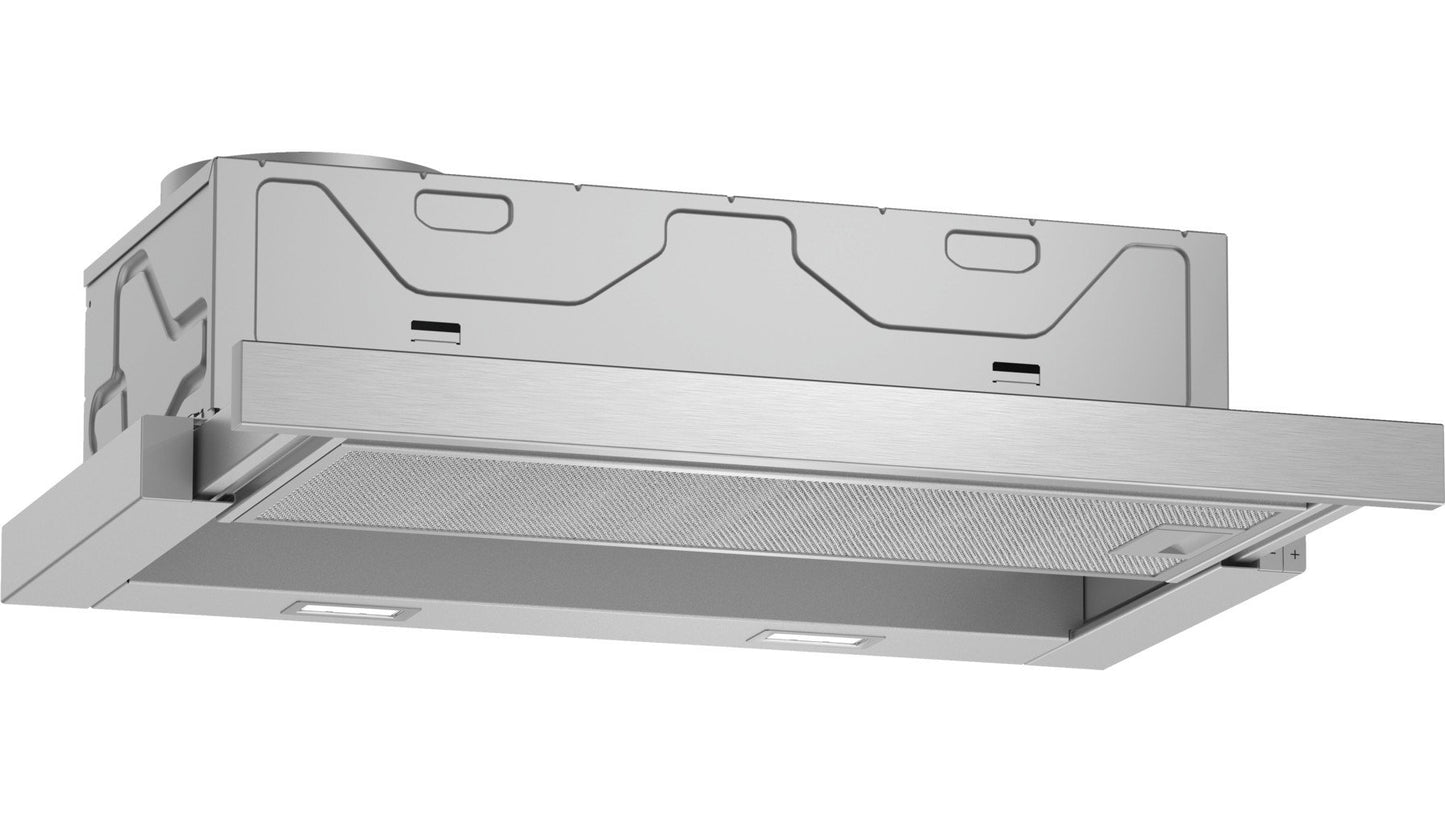

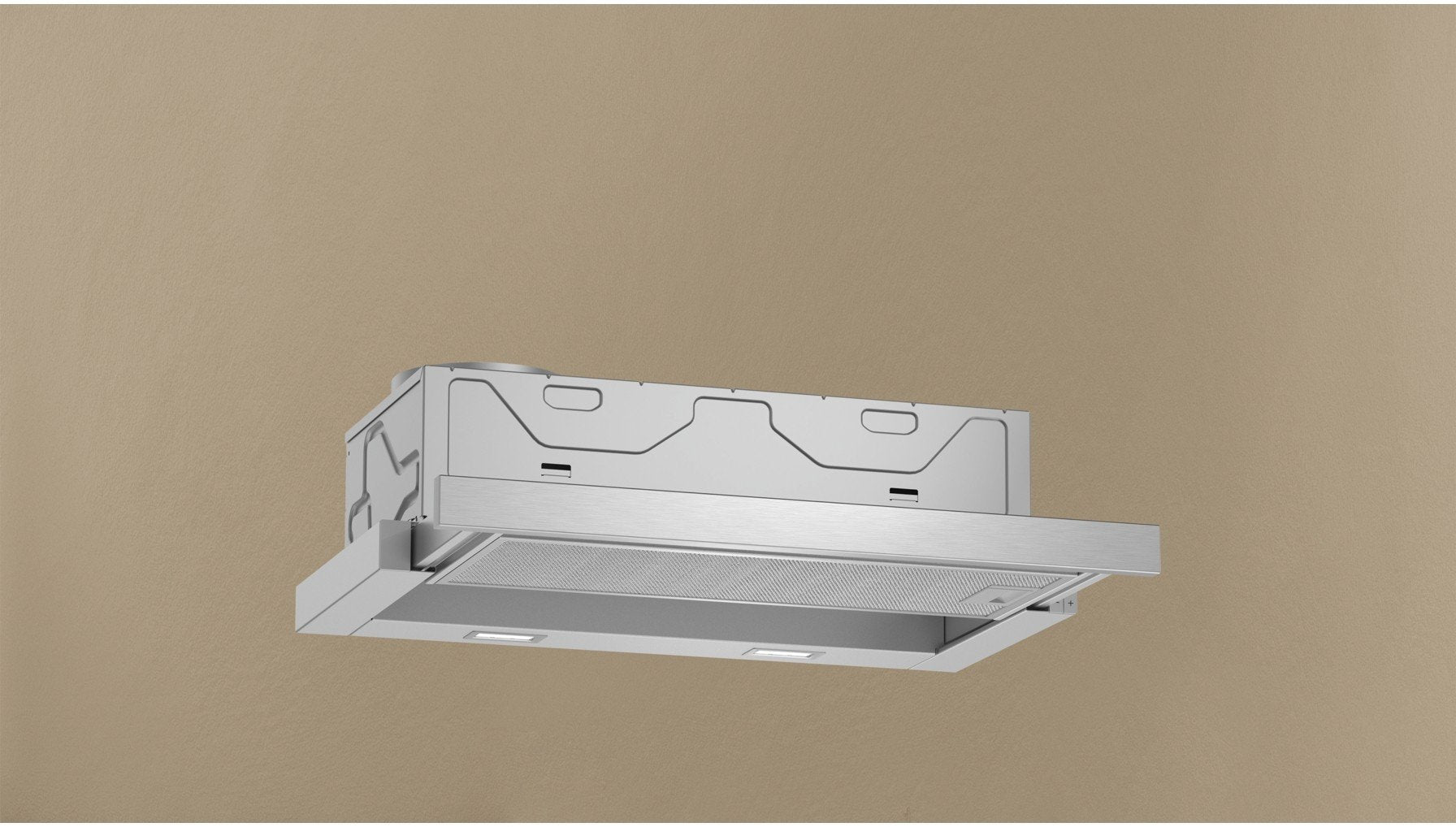

60cm Telescopic Chimney Hood | D46ED22N0B

Key Features:

• 420 m³/h extraction rate
• 3 speeds + 1 Intensive
• 2 x LED lights
• Soft touch controls
• built-in dimensions (HxWxD): 162 x 526 x 290 mm

Description:

Features

• LED display
• 2 x LED lights

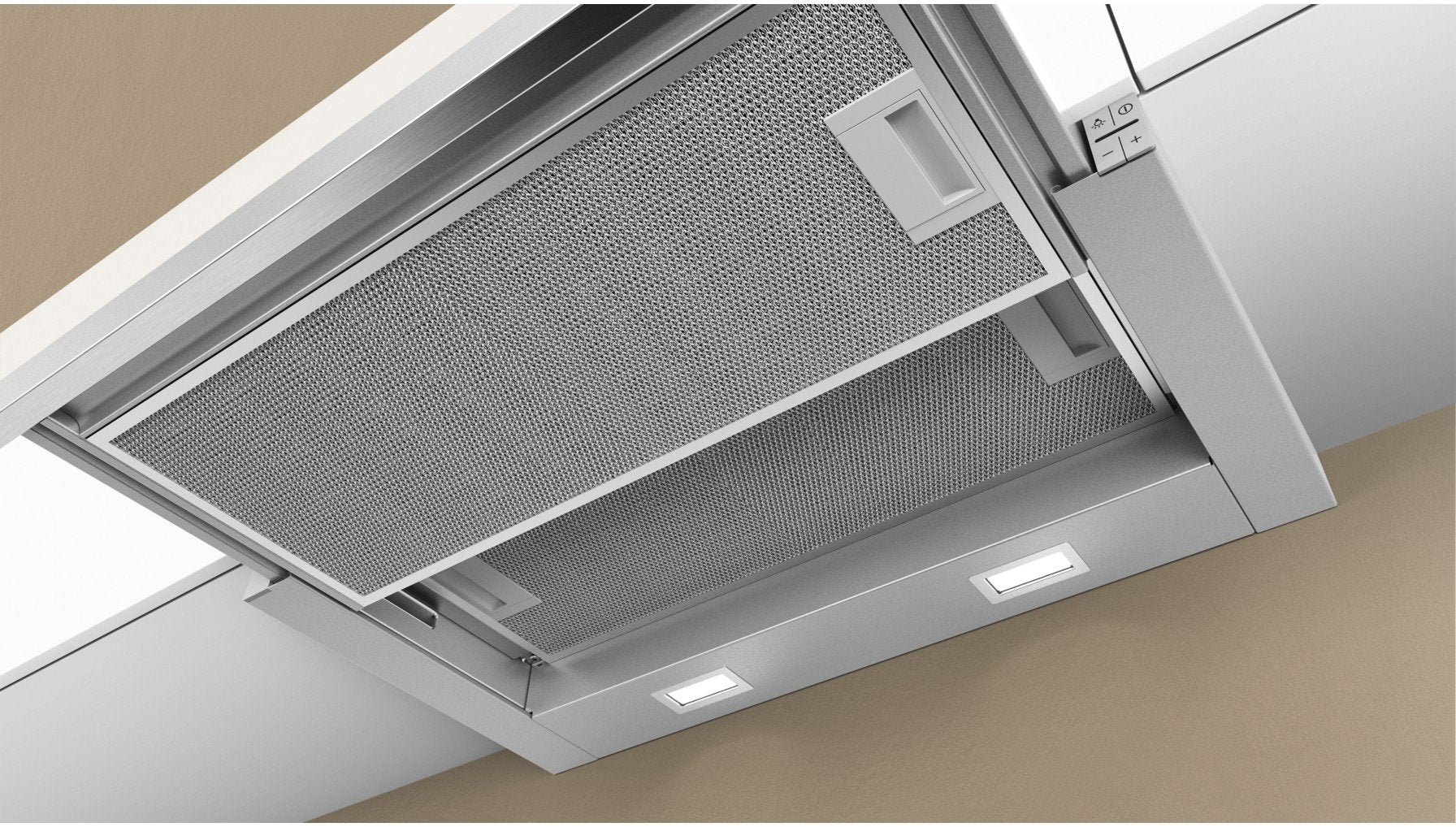

• 2 metal grease filter cassettes
• metal grease filter
• 3 speeds plus intensive
• Automatic after running (10 minutes)
• Automatic intensive revert (6mins)

Design

1. 60 cm wide
2. Telescopic hood
3. Silver metallic grey
4. Standard design

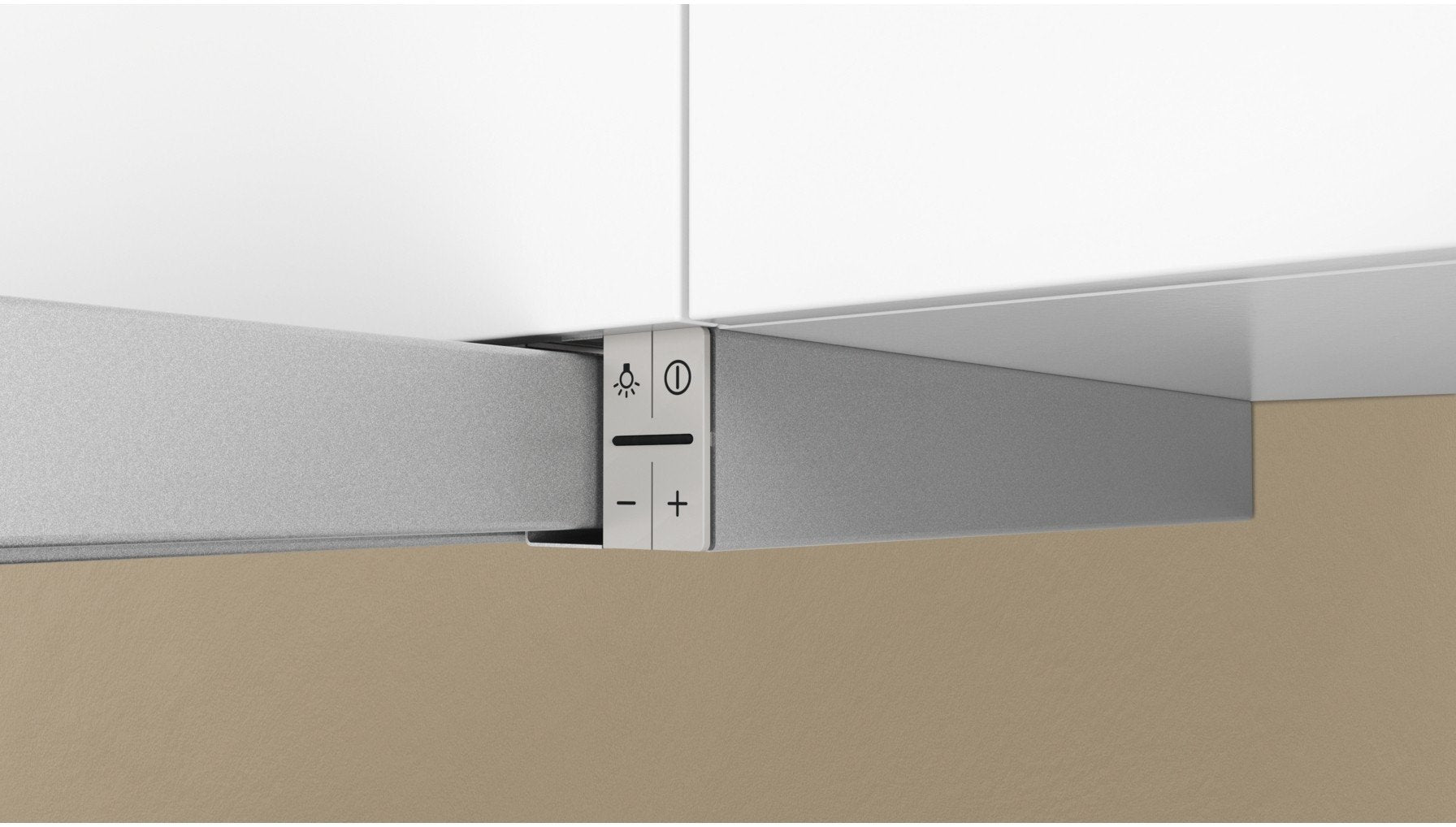

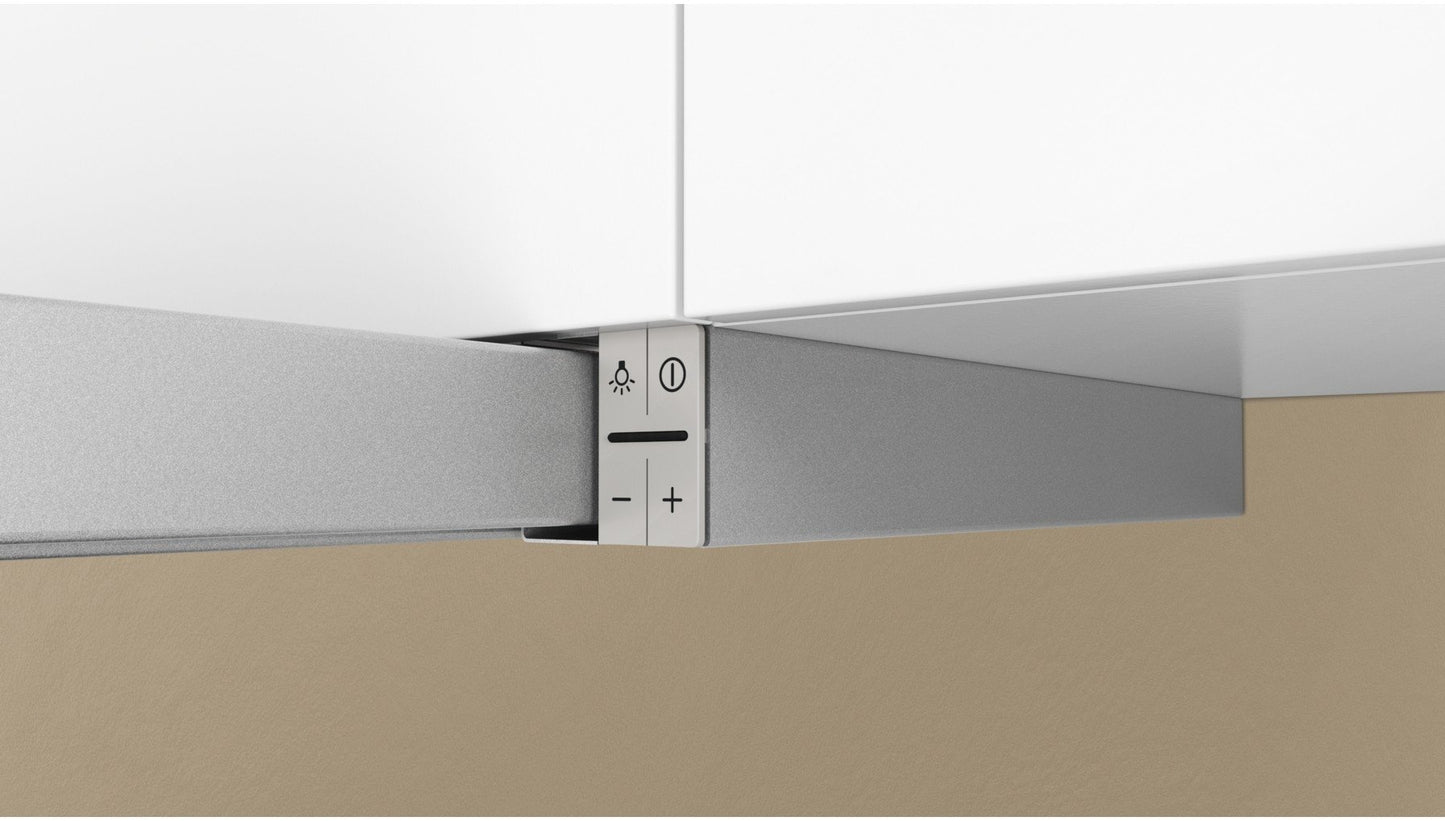

5. Soft touch control
6. Electronic controls
7. Neutral white lights

Performance/technical information

• Telescopic standard installation
• Suitable for ducted extraction and recirculation
• For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
• Extraction rate according to EN 61591 ø 15 cm:
• max. Normal use 270 m³/h
• Intensive 420 m³/h
• Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 59 dB (A) re 1pW
• Noise max. Normal Level: 59 dB
• Light Intensity: 683 lux
• Colour Temperature: 3500 K
• Electrical cable lenght 1.75 m
• Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
• Dimensions exhaust air (HxWxD): 203-203 x 598 x 290 mm
• Dimensions recirculating (HxWxD): 203-203 x 598 x 290 mm
• built-in dimensions (HxWxD): 162 x 526 x 290 mm
• Energy Efficiency Class: A
• Blower Efficiency Class: A
• Lighting Efficiency Class: A
• Grease Filtering Efficiency Class: C
• Average Energy Consumption: 20.1 kWh/year
