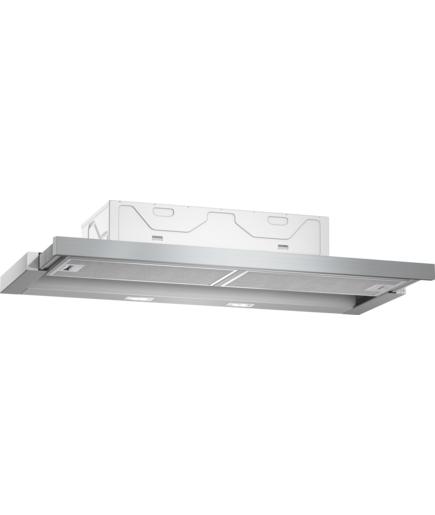

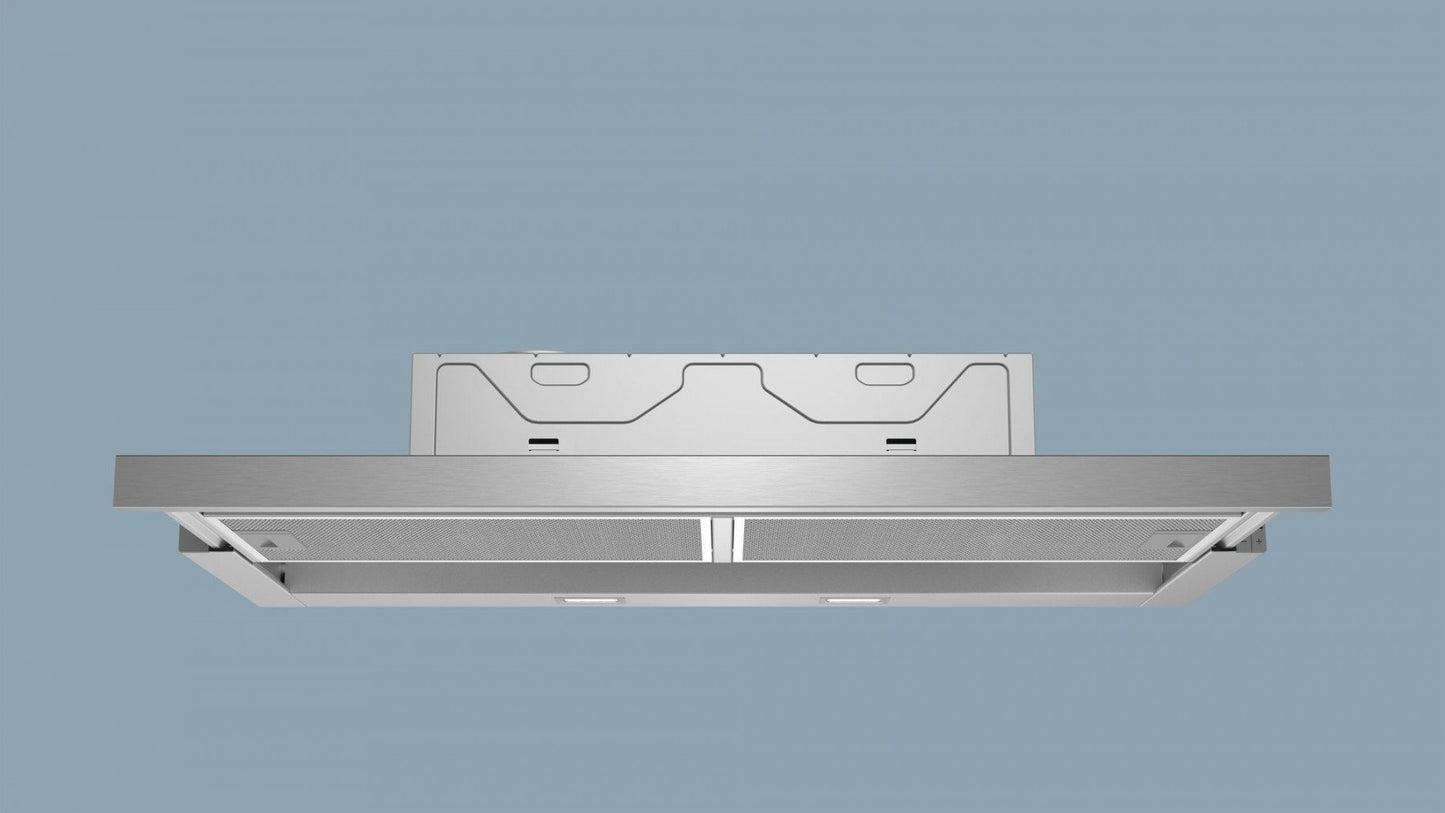

iQ300 90cm Telescopic Slimline Hood | LI94MA530B

Key Features:

• 3 Speed + 1 Intensive
• 160 m3/h extraction rate
• Electronic control via Soft touch button control
• 3 x Metal grease filter, dishwasher-proof
• 2 x LED Lights
• Dimensions: Height: 90cm x Depth: 29cm

Description:

Design

90 cm wide

Silver metallic lacquer

Electronic control via Soft touch button control

Neutral white lights

For installation into a 90cm wide cupboard

Key features

Soft touch button control for extractor speeds and light

2 x LED lights

3 x metal grease filter cassettes - dishwasher safe

Steel filter cover

pyramid filter

1 single inlet horizontal, BLDC for Ventilation

Performance/technical information

Suitable for ducted and re-circulating operation

For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed

Extraction rate according to EN 61591 ø 15 cm:

max. Normal use 270 m³/h Intensive 420 m³/h

Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:

Max. normal use: 60 dB(A) re 1 pW (46 dB(A) re 20 µPa sound pressure)

Intensive: 70 dB(A) re 1 pW (56 dB(A) re 20 µPa sound pressure)

3 x power levels plus intensive setting

Power rating: 76 W

Automatic intensive revert

Noise max. Normal Level: 60 dB

Extractor hose 150 mm

Dimensions (WxD): 898 x 290 mm

built-in dimensions (HxWxD): 162 x 526 x 290 mm

Dimensions exhaust air (HxWxD): 203-203 x 898 x 290 mm

Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

Light Intensity: 569 lux

Colour Temperature: 3500 K

Average Energy Consumption: 20 kWh/year

Energy Efficiency Class: A

Blower Efficiency Class: A

Lighting Efficiency Class: A

Grease Filtering Efficiency Class: C
