No matter whether you have an open-plan kitchen and living-room or a small, closed-off kitchen. We offer the optimum air volume for kitchens of all sizes. Air should be exchanged 6 to 12 times an hour to ensure a consistently pleasant ambience. To do so, the air delivery volume or power of the cooker hood must be appropriate to the room volume.
Additional information
Key performance features:
- Energy Efficiency Class: A (at a range of energy efficiency classes from A++ to E)*
- Extraction rate according to EN 61591 ø 15 cm:
max. Normal use 400 m³/h
Intensive 670 m³/h - Noise max. Normal Level: 58 dB*
Features

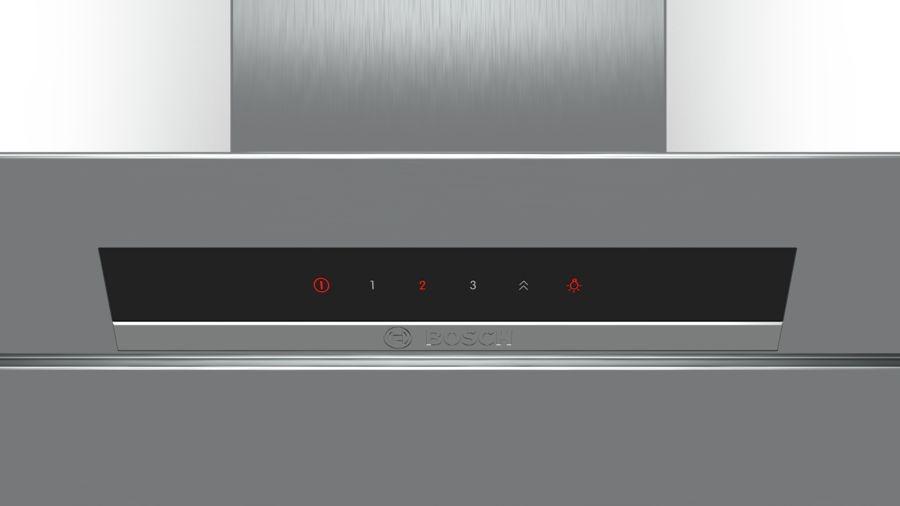

- TouchControl with Electronic display
- Electronic display
- 3 power levels & intensive setting

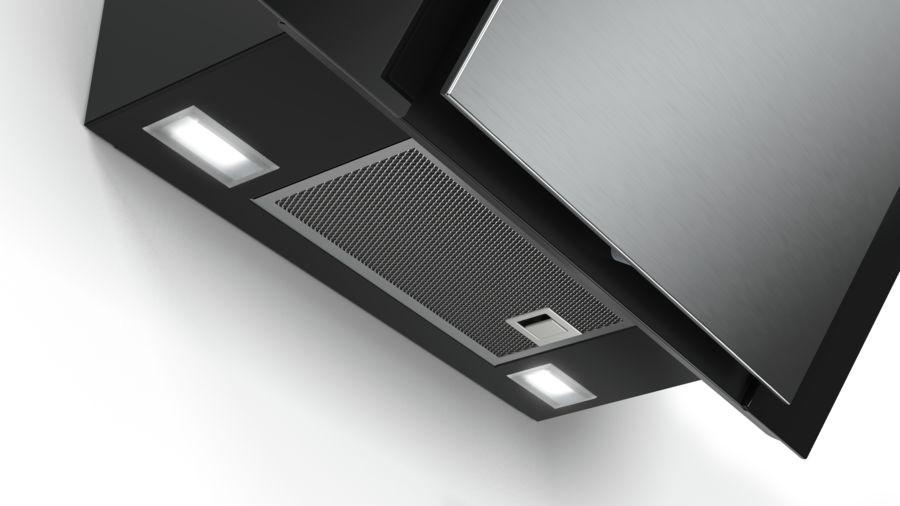

- 2 x 1.5W LED light
- Colour Temperature: 3500 K
- Automatic intensive revert (6mins)
- 2 metal grease filter cassettes
- easy to clean Inner frame
- Designed for wall mounted installation
- Rim ventilation
Design
- Black

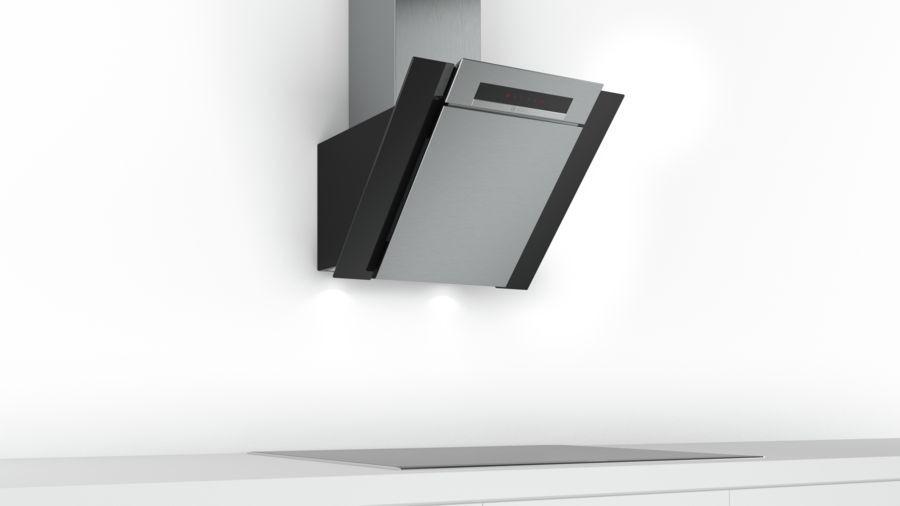

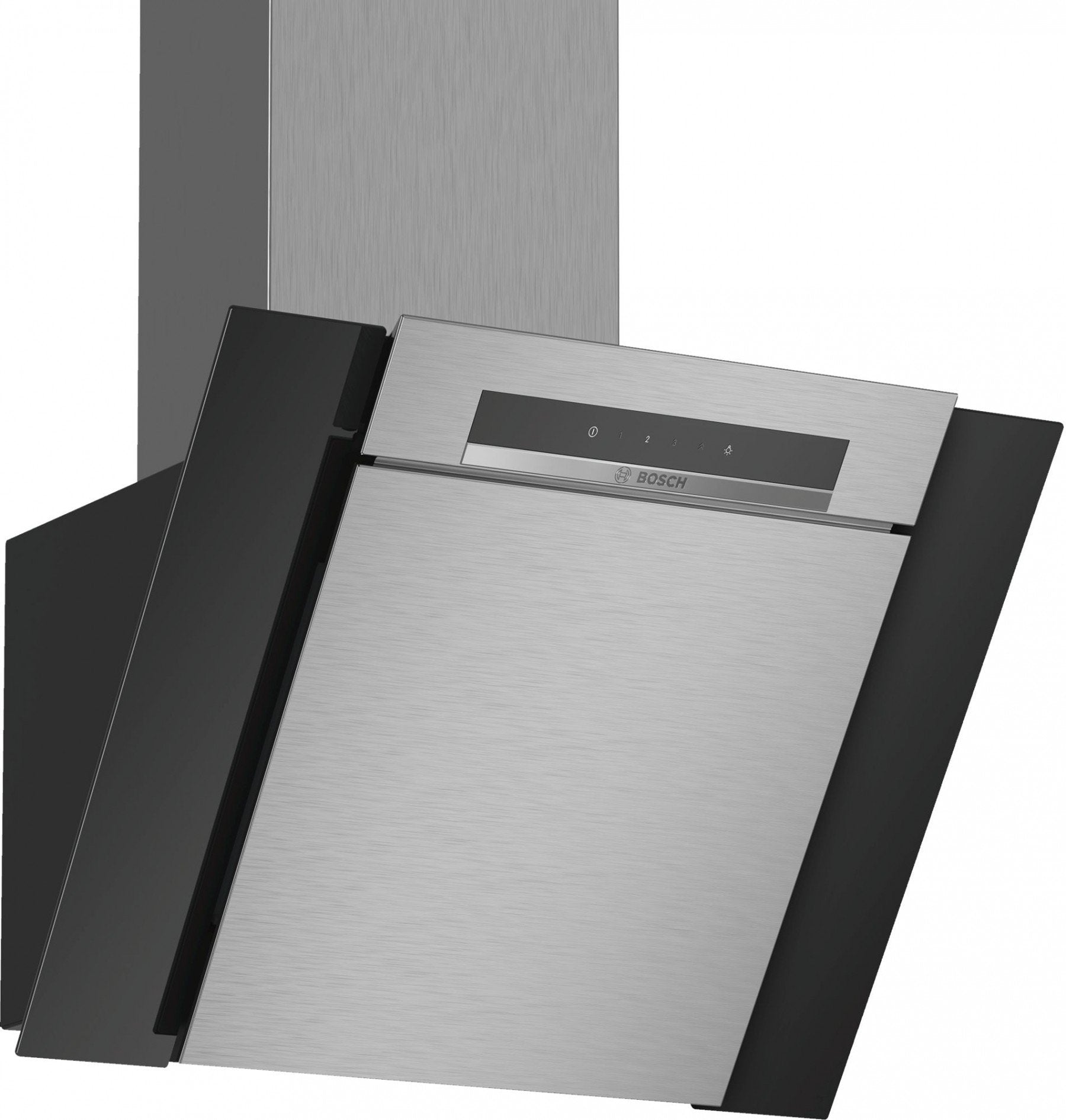

- angled glass design
- Chimney extractor hood
- TouchControl
- Electronic control
Performance/technical information
- Suitable for ducted or recirculating operation
- For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
- Easy installation system
- Extraction rate according to EN 61591 ø 15 cm:
max. Normal use 400 m³/h
Intensive 670 m³/h - Extraction rate according to EN 61591 max. 320 m³/h
- Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 58 dB(A) re 1 pW (44 dB(A) re 20 µPa sound pressure)
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
Max. normal use: 58 dB(A) re 1 pW (44 dB(A) re 20 µPa sound pressure)
Intensive: 67 dB(A) re 1 pW (53 dB(A) re 20 µPa sound pressure) - Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 58 dB (A) re 1pW
- Noise max. Normal Level: 58 dB*
- Colour Temperature: 3500 K
- Electrical cable length 1.3 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 898-1168 x 590 x 467 mm
- Dimensions recirculating (HxWxD): 958-1228 x 590 x 467 mm
- Dimensions recirculating with CleanAir module (HxWxD):
1088 x 590 x 467 mm - mounting with outer chimney
1158-1428 x 590 x 467 mm - mounting with telescopic chimney - Energy Efficiency Class: A (at a range of energy efficiency classes from A++ to E)*
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: D*
- Average Energy Consumption: 49.2 kWh/year*
Optional accessories
- Recirculating kit
