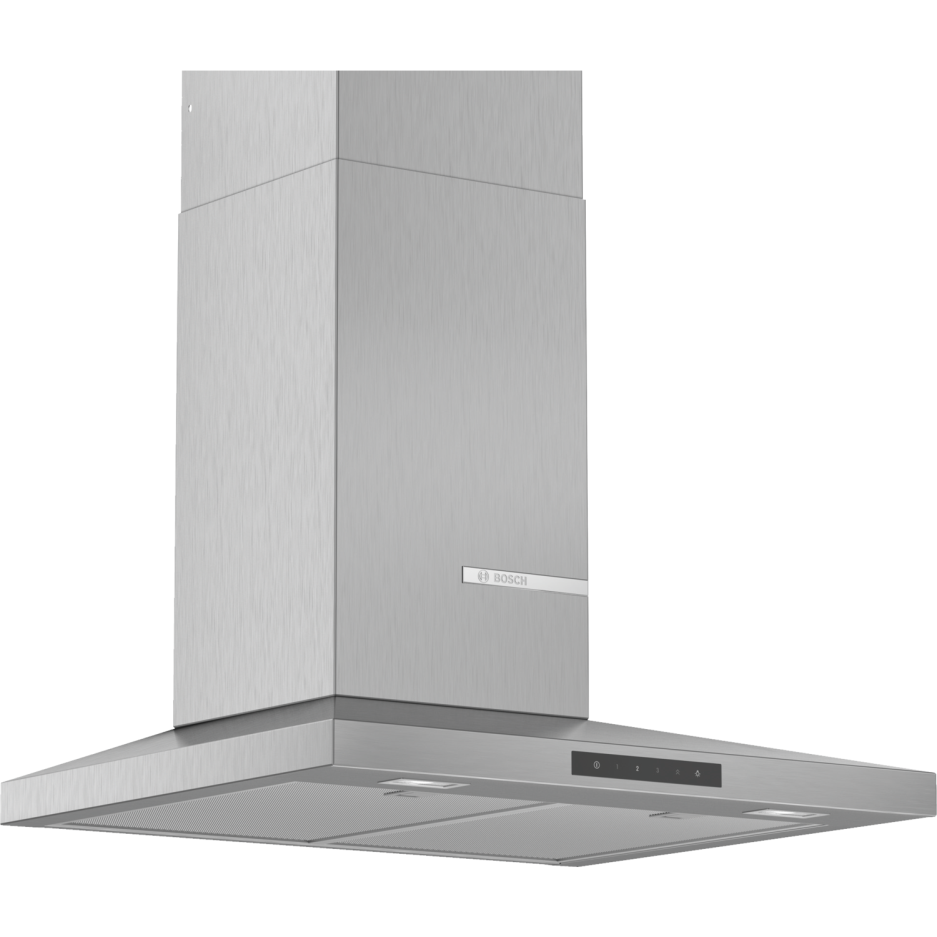

60cm Pyramid Chimney Hood | DWQ66DM50B

Key performance features:

• Energy Efficiency Class: A (at a range of energy efficiency classes from A++ to E)*
• Extraction rate according to EN 61591 ø 15 cm:
• max. Normal use 400 m³/h
• Intensive 610 m³/h
• Noise max. Normal Level: 62 dB*

Features

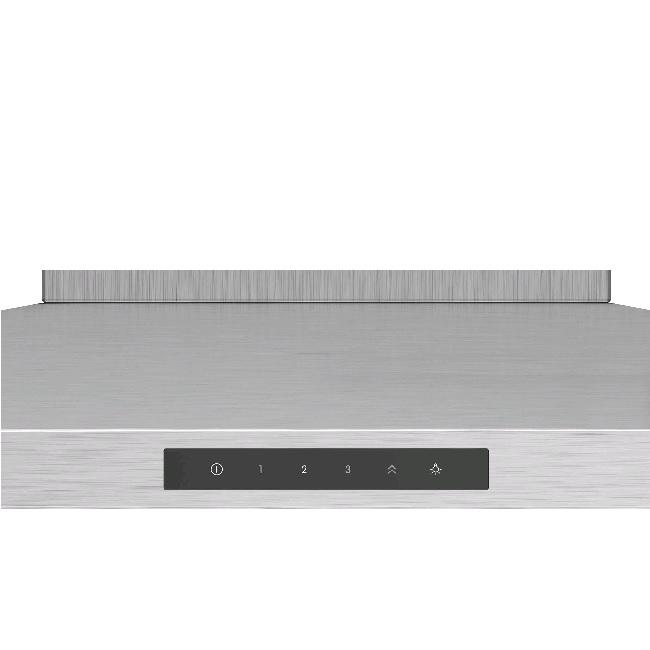

• TouchControl with Electronic display
• Electronic display
• 3 power levels & intensive setting
• 2 x 1.5W LED light
• Colour Temperature: 3500 K
• Automatic intensive revert (6mins)

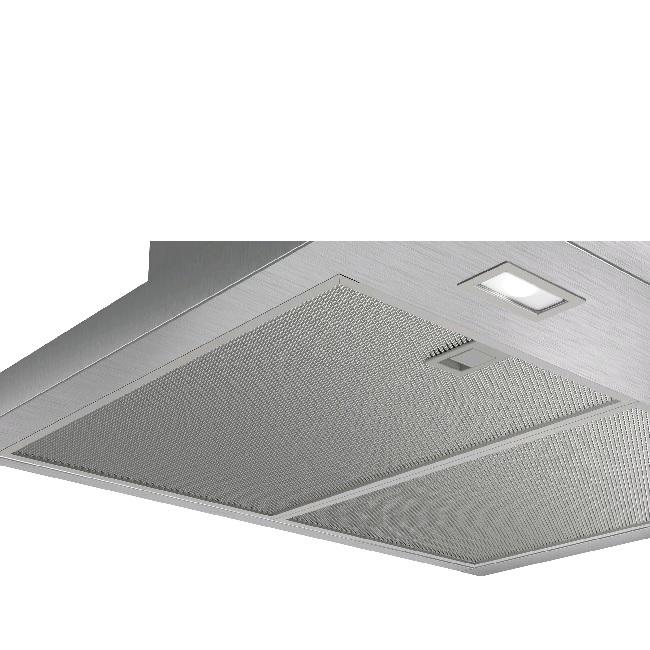

• 2 removable metal grease filter cassettes
• Designed for wall mounted installation

Design

• Brushed steel
• Slim Pyramid
• Chimney extractor hood
• TouchControl
• Electronic control

Performance/technical information

• Suitable for ducted or recirculating operation
• For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
• Max. extraction rate: 610 m3/h
• Extraction rate according to EN 61591 ø 15 cm:
• max. Normal use 400 m³/h
• Intensive 610 m³/h
• Extraction rate in recirculation mode:
• Max. normal use: 300 m³/h
• Intensive: 360 m³/h
• Noise max. Normal Level: 62 dB*
• Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
• Max. normal use: 62 dB(A) re 1 pW (50 dB(A) re 20 µPa sound pressure)
• Intensive: 70 dB(A) re 1 pW (58 dB(A) re 20 µPa sound pressure)
• Noise levels in recirculation mode:
• Max. normal use: 72 dB(A) re 1 pW (60 dB(A) re 20 µPa sound pressure)
• Intensive: 75 dB(A) re 1 pW (63 dB(A) re 20 µPa sound pressure)
• Power rating: 220 W
• Light Intensity: 250 lux
• Colour Temperature: 3500 K
• Electrical cable length 1.3 m
• Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
• Dimensions exhaust air (HxWxD): 676-1006 x 600 x 500 mm
• Dimensions recirculating (HxWxD): 676-1116 x 600 x 500 mm
• Dimensions recirculating with CleanAir module (HxWxD):
• 744 x 600 x 500 mm - mounting with outer chimney
• 874-1204 x 600 x 500 mm - mounting with telescopic chimney
• Energy Efficiency Class: A (at a range of energy efficiency classes from A++ to E)*
• Blower Efficiency Class: A*
• Lighting Efficiency Class: A*
• Grease Filtering Efficiency Class: C*
• Average Energy Consumption: 38.3 kWh/year*

Optional accessories

• Recirculating kit
