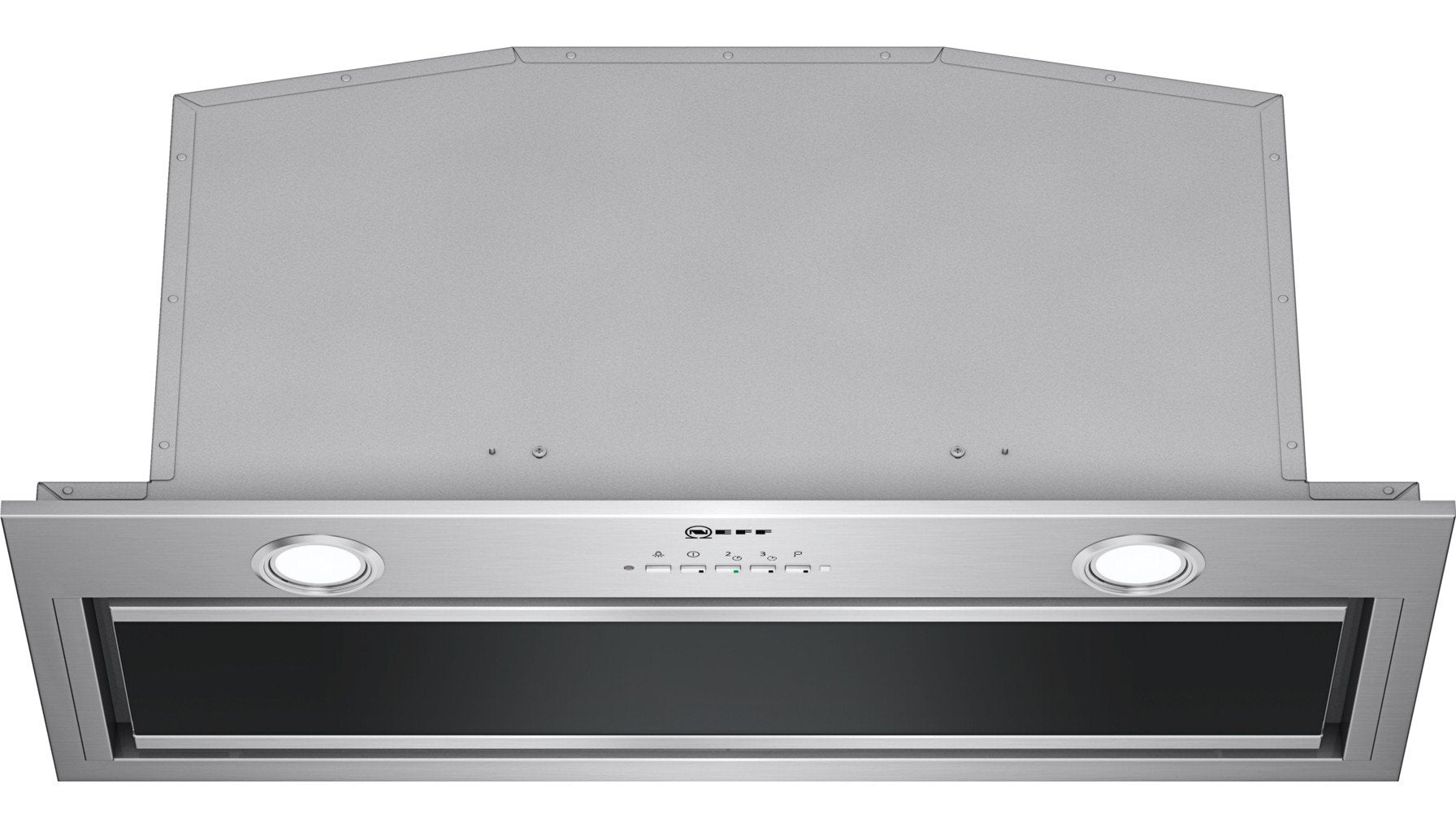

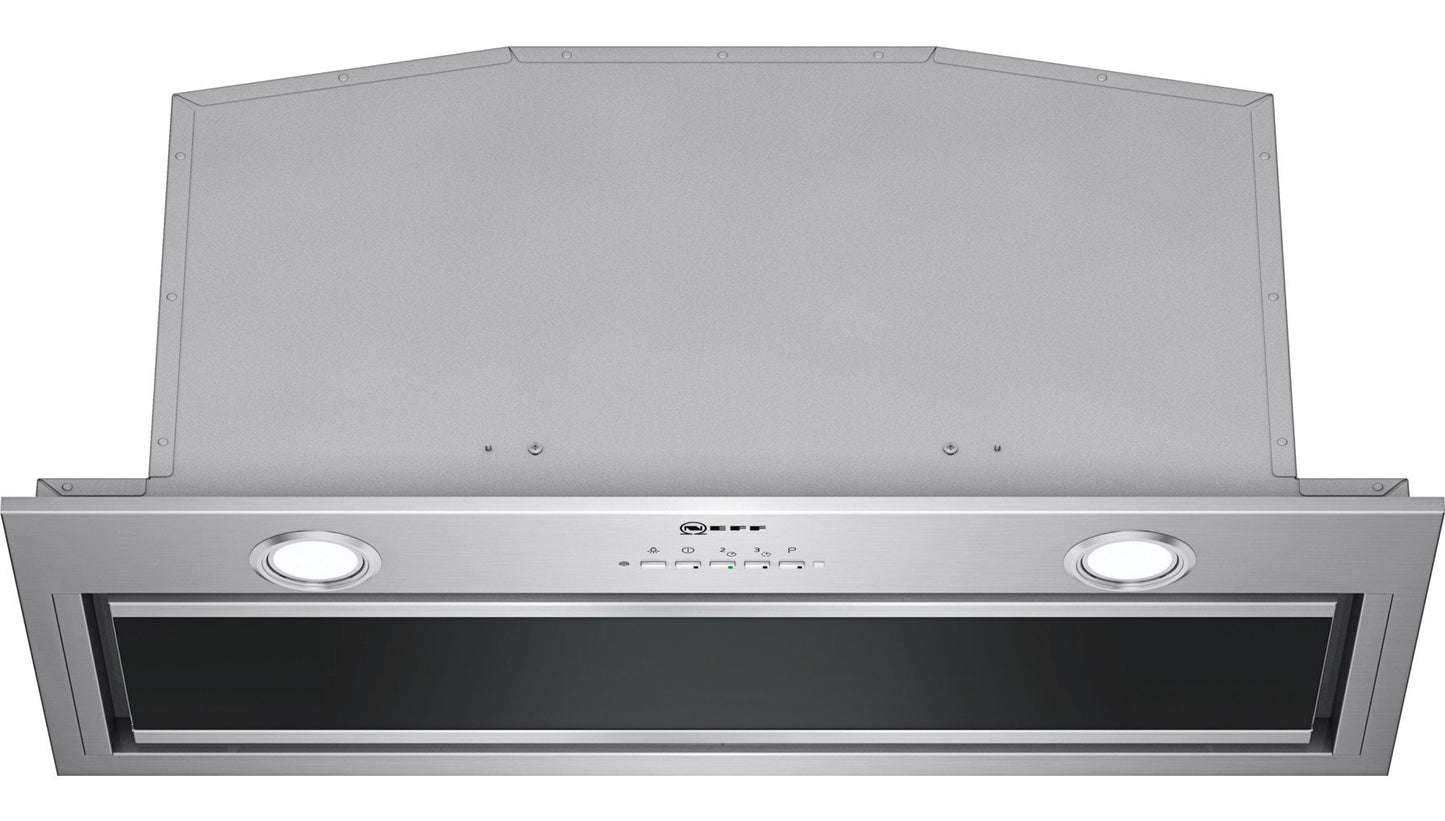

70cm Canopy Hood | D57ML67N1B

Key Features:

• 770 m³/h extraction rate
• 3 speeds + Intensive
• 2 x LED lights
• softLight with dimmer function
• Soft touch control
• 2 metal grease filter cassettes - Saturation indicator for grease filter
• Dimensions exhaust air (HxWxD): 418-418 x 700 x 300 mm

Description:

Features

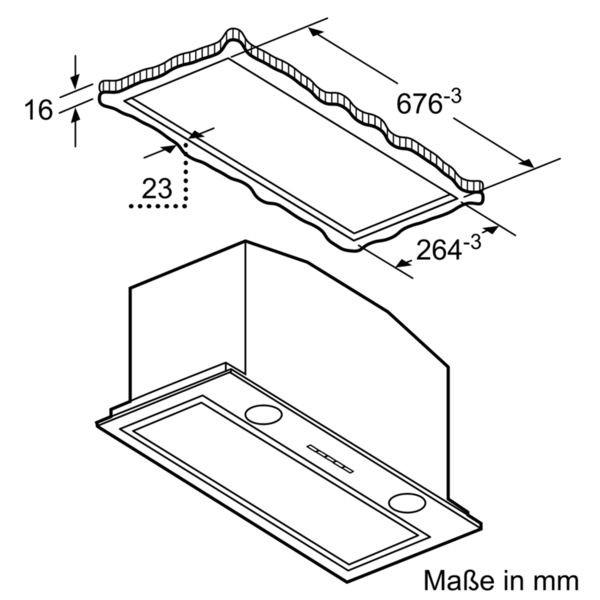

• For installation in a kitchen cabinet
• LED display
• 2 x 1W LED lights
• softLight with dimmer function
• 2 metal grease filter cassettes
• Saturation indicator for grease filter
• Filter cover glass, metal grease filter
• Interval operation
• 3 speeds plus intensive (30 minutes)
• Automatic intensive revert (6mins)
• EfficientDrive BLDC technology
• Rim ventilation

Design

• Stainless steel with glass canopy
• 70 cm wide Canopy hood
• Standard design
• Soft touch control
• Electronic controls
• Light Colour: warm white

Performance/technical information

• Suitable for ducted extraction and recirculation
• For recirculated extraction charcoal filter (accessory) needed
• Twin channel high performance fan motor
• In recirculation operation chimless use possible
• Extraction rate according to EN 61591 ø 15 cm:
• max. Normal use 570 m³/h
• Intensive 770 m³/h
• Noise level according to EN 60704-3 and EN 60704-2-13 at
• maximum normal setting: extraction rate: 65 dB (A) re 1pW
• Noise max. Normal Level: 65 dB
• Light Intensity: 244 lux
• Colour Temperature: 4000 K
• Electrical cable lenght 1.5 m
• Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

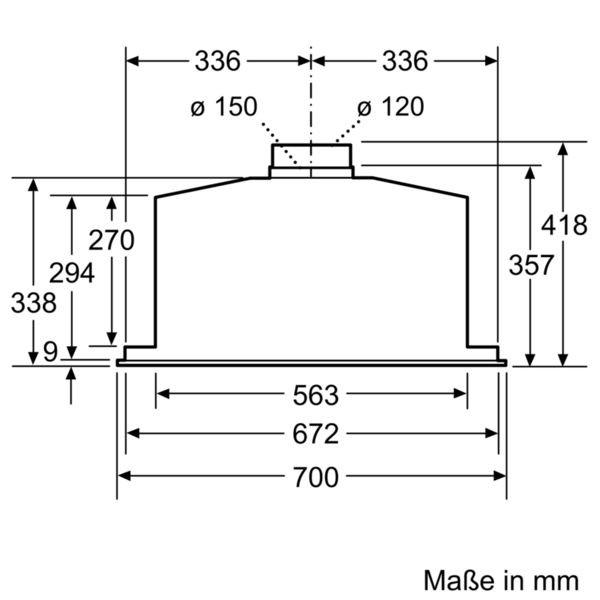

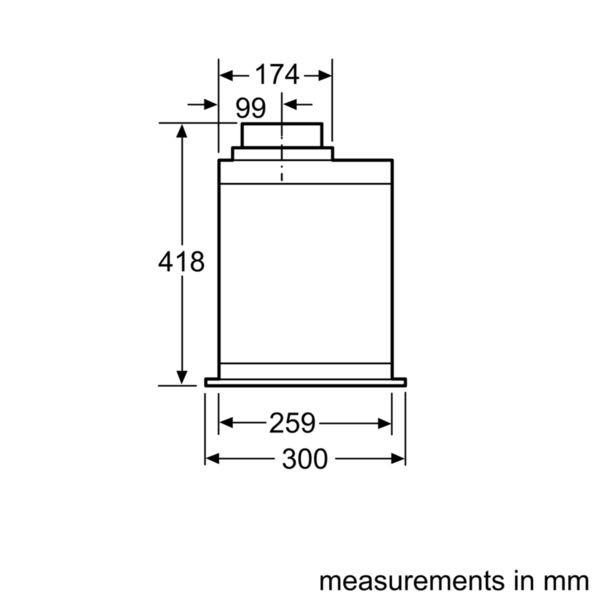

• Dimensions exhaust air (HxWxD): 418-418 x 700 x 300 mm
• Dimensions recirculating (HxWxD): 418-418 x 700 x 300 mm
• Energy Efficiency Class: A
• Blower Efficiency Class: A
• Lighting Efficiency Class: A
• Grease Filtering Efficiency Class: D
• Average Energy Consumption: 49.1 kWh/year
