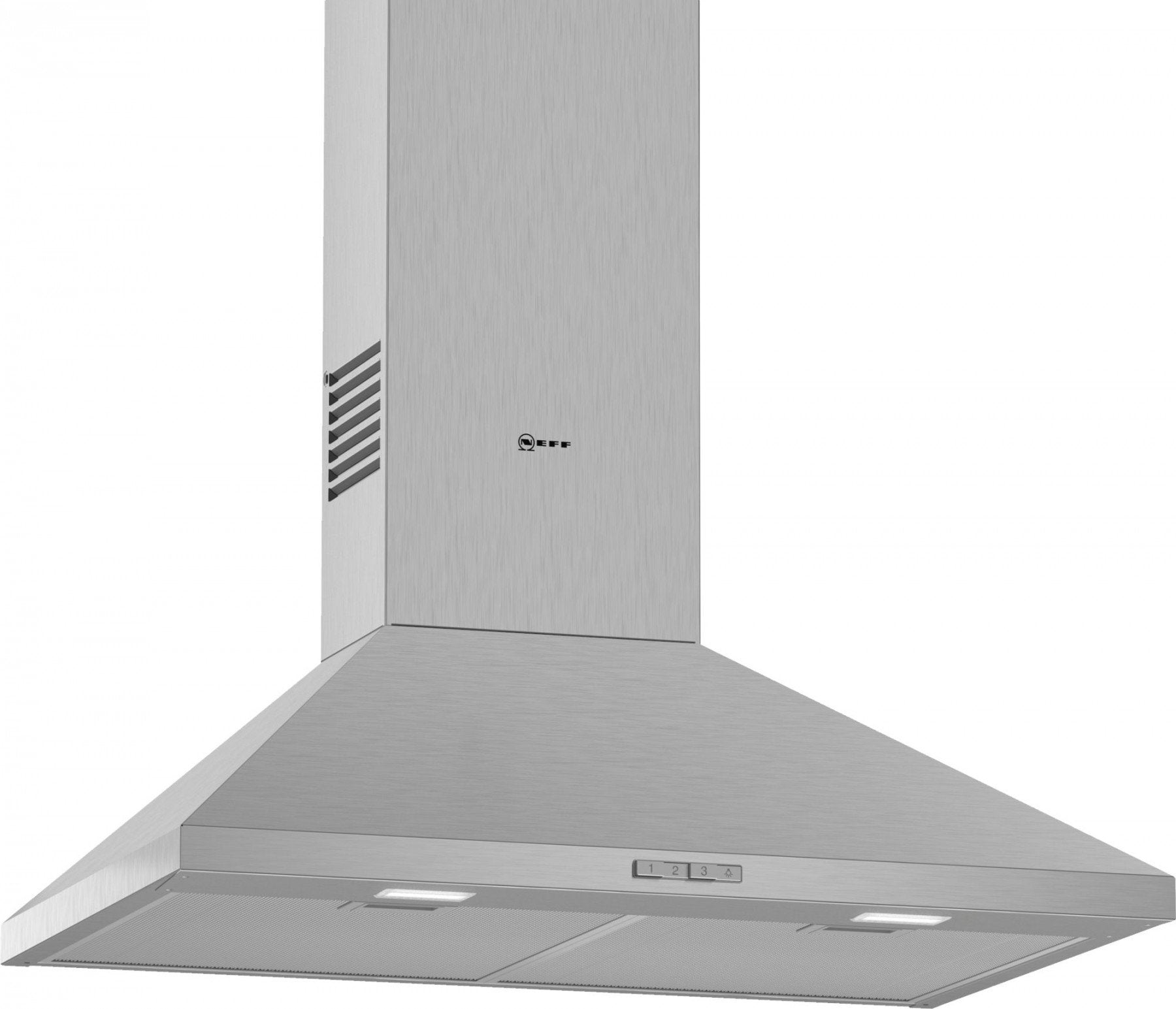

75cm Pyramid Design Chimney Hood | D72PBC0N0B
75cm Pyramid Design Chimney Hood | D72PBC0N0B
Regular price
Rs. 289.00
Regular price
Sale price
Rs. 289.00
Unit price
/
per
Couldn't load pickup availability
75cm Chimney Hood By Neff Features:
- Energy Efficiency Class: C
- 3 Power levels
- Max Extraction Rate 360 m³/h
- 2 x 1.5w LED Light

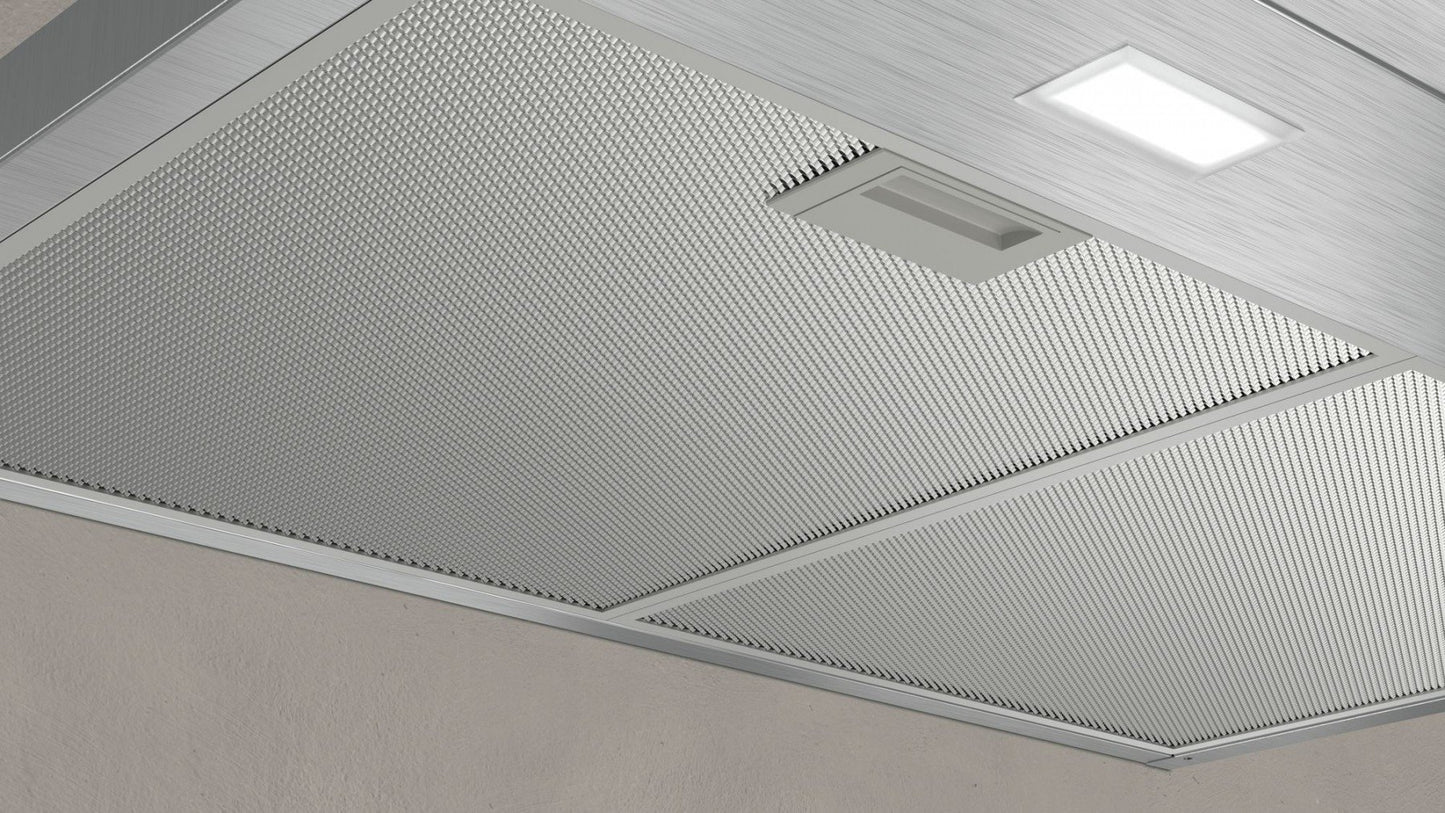

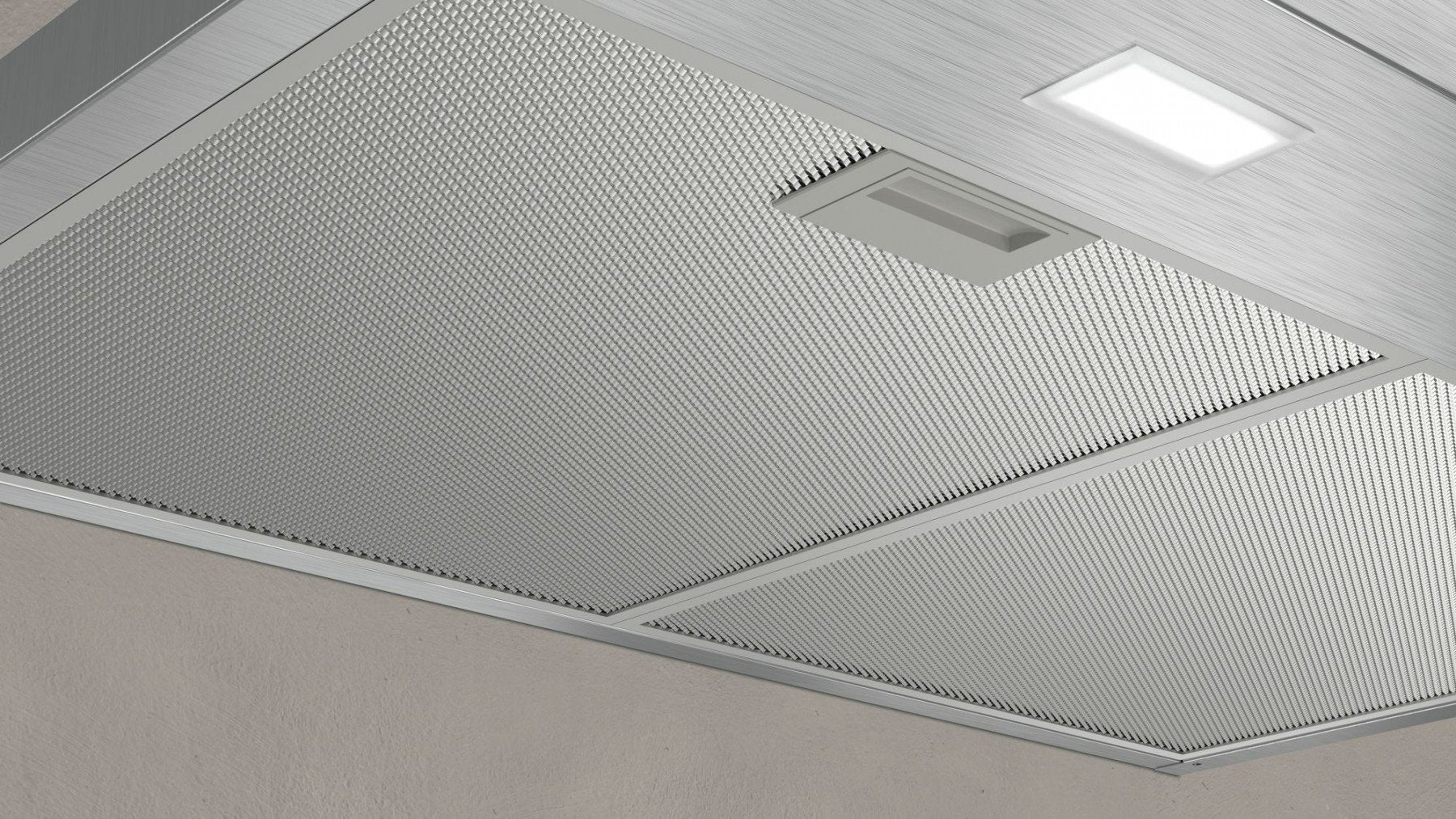

- 2 metal grease filter cassettes
- Push button operation
Dimensions exhaust air (HxWxD): 799-975 x 750 x 500 mm
Description:
The pyramid hood is a traditionally designed hood and a trademark design of our collections.
- LED lighting: a clear illumination whilst cooking thanks to the energy-saving LED lights
Technical Specification
Key performance features:
- Energy Efficiency Class: C (at a range of energy efficiency classes from A++ to E)*
- Max. extraction rate: 360 m3/h
- Noise max. Normal Level: 65 dB*
Features

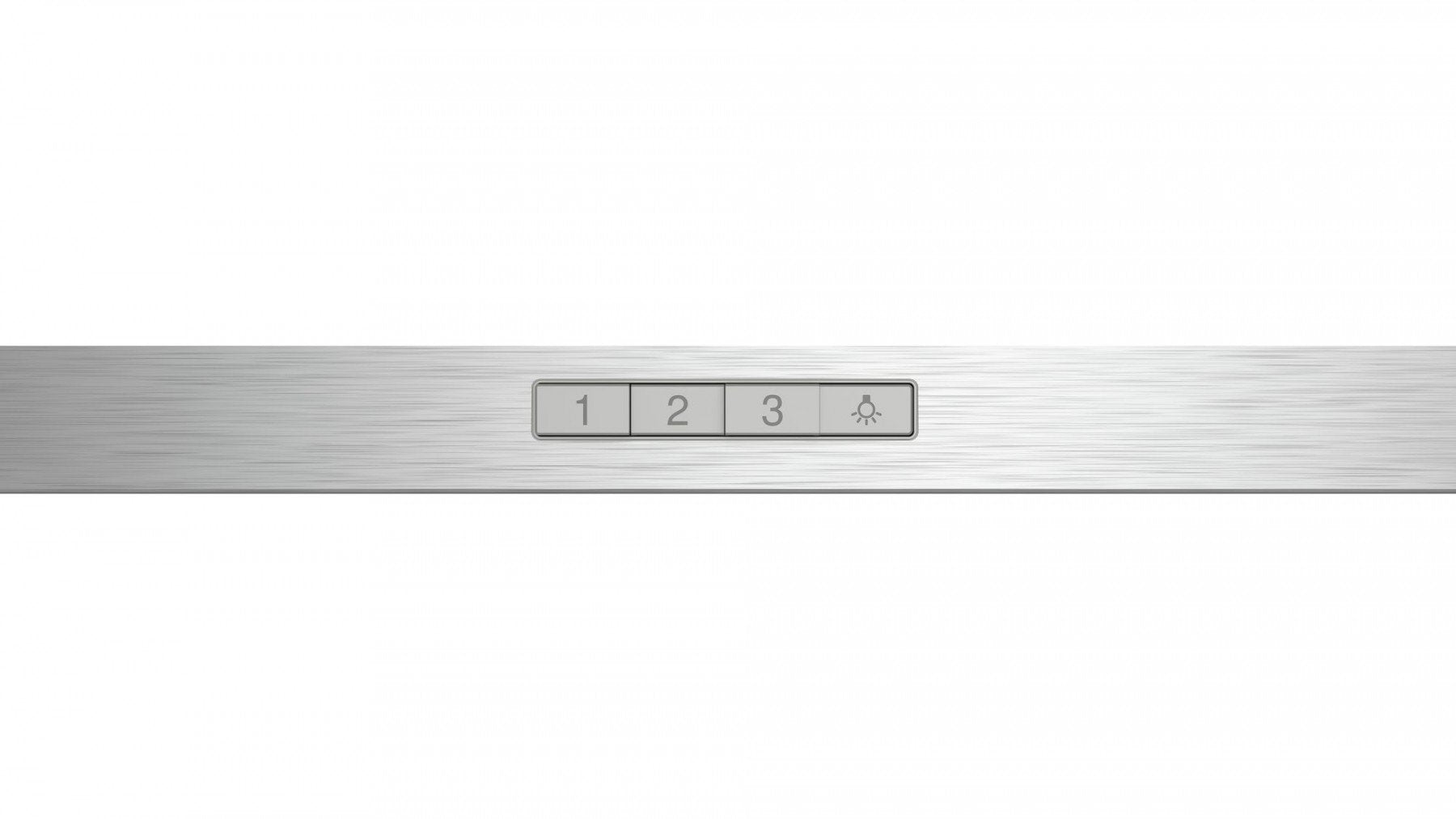

- Push button control operation
- 3 power levels
- 2 x 1.5w LED Light
- Colour Temperature: 3500 K
- 2 metal grease filter cassettes
- For wall mounted installation
Design
- Stainless steel
- Pyramid
- Chimney hood
- Push button control operation
- Mechanical controls
Performance/technical information
- Suitable for ducted extraction and recirculation
- For recirculated extraction recirculating kit (accessory) needed
- Max. extraction rate: 360 m3/h
- Maximum extraction rate exhaust air 360 m³/h according to EN 61591
-
Extraction rate in recirculation mode:
Max. normal use: 200 m³/h - Noise max. Normal Level: 65 dB*
- Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 65 dB(A) re 1 pW (53 dB(A) re 20 µPa sound pressure)
-
Noise level in recirculation mode:
Max. normal use: 67 dB(A) re 1 pW (55 dB(A) re 20 µPa sound pressure) - Light Intensity: 94 lux
- Colour Temperature: 3500 K
- Electrical cable length 1.3 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 799-975 x 750 x 500 mm
- Dimensions recirculating (HxWxD): 799-975 x 750 x 500 mm
- Energy Efficiency Class: C (at a range of energy efficiency classes from A++ to E)*
- Blower Efficiency Class: E*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: D*
- Average Energy Consumption: 51.3 kWh/year*
Optional accessories
- Recirculating kit Z5138X5
