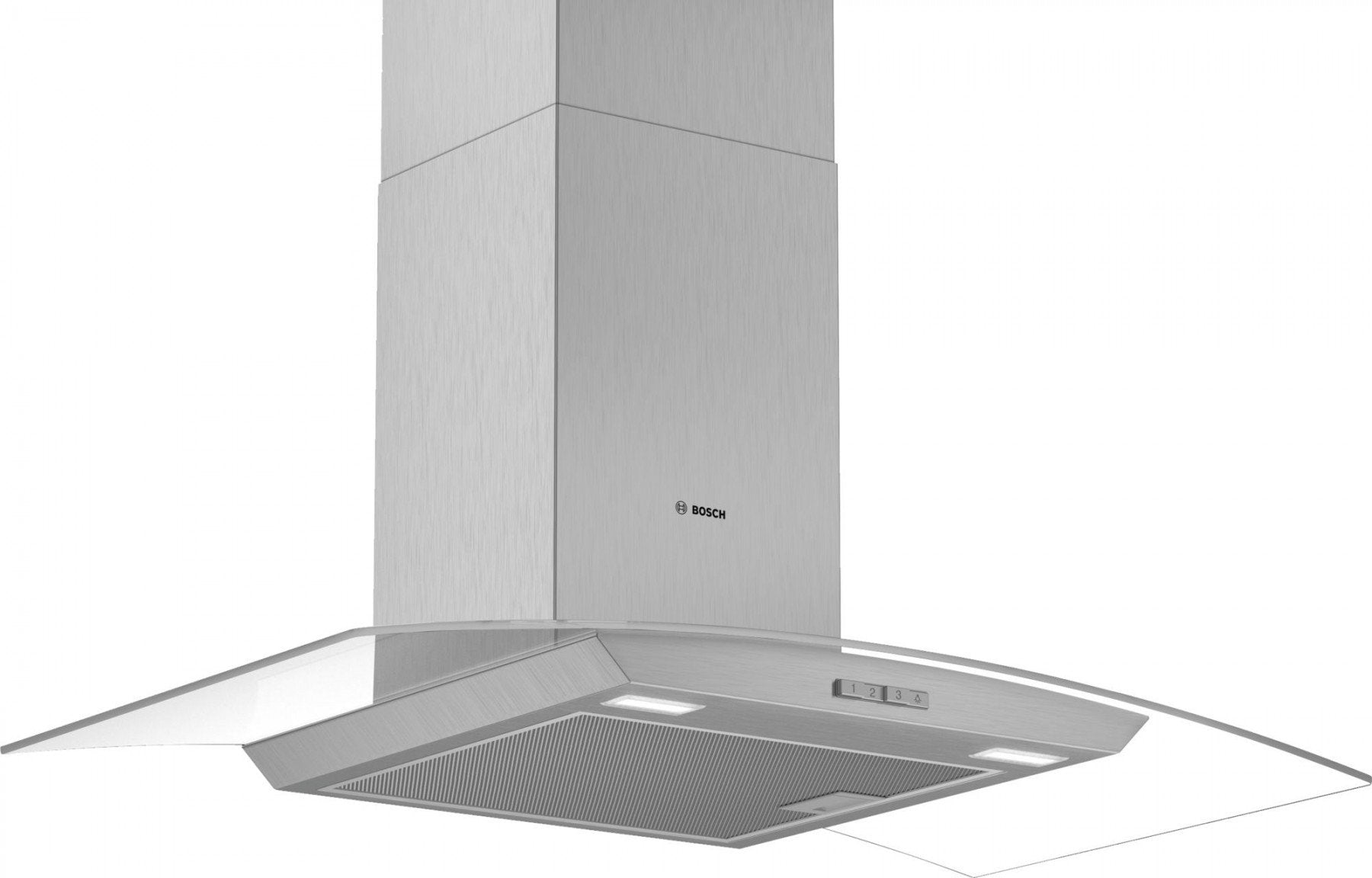

90cm Curved Glass Chimney Extractor Hood | DWA94BC50B

• Energy Efficiency Class: D (at a range of energy efficiency classes from A++ to E)*
• Max. extraction rate: 340 m3/h
• Noise max. Normal Level: 64 dB*

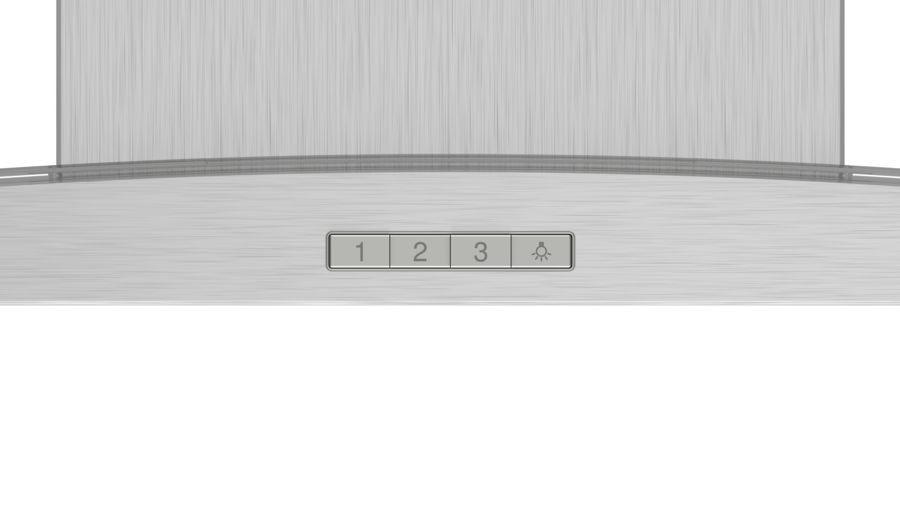

• Push button control
• 3 power levels
• 2 x 1.5W LED light
• Colour Temperature: 3500 K

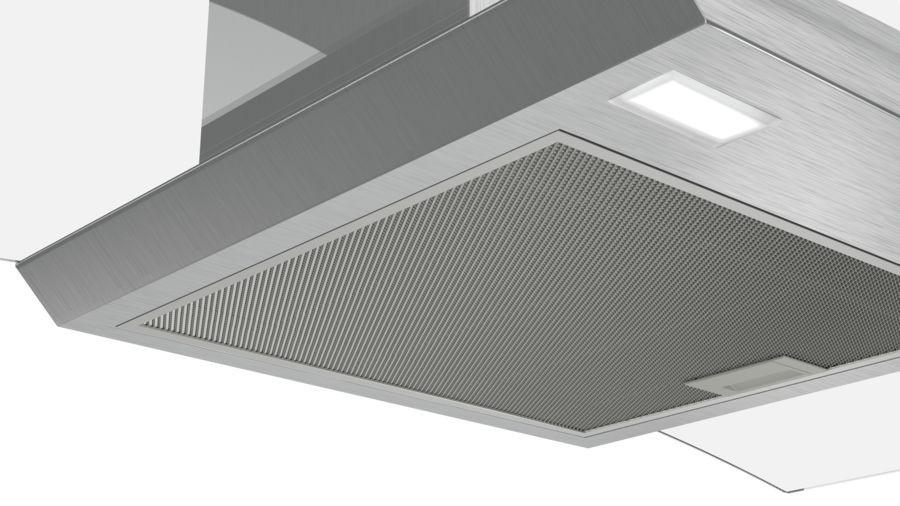

• 1 metal grease filter cassette

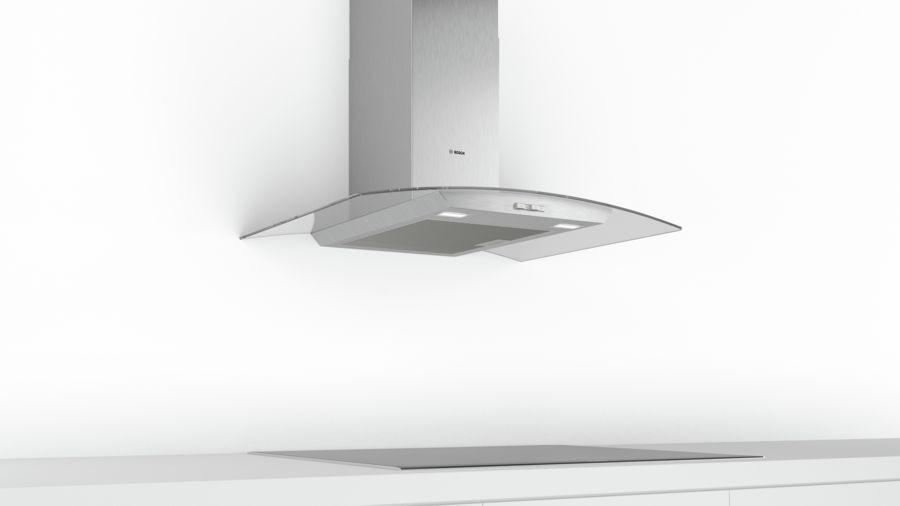

• Designed for wall mounted installation

• Brushed steel
• Glass design
• Chimney extractor hood
• Mechanical

• Suitable for ducted or recirculating operation
• For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
• Max. extraction rate: 340 m3/h
• Maximum extraction rate exhaust air 340 m³/h according to EN 61591
• Extraction rate in recirculation mode:
  Max. normal use: 190 m³/h
• Noise max. Normal Level: 64 dB*
• Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 64 dB(A) re 1 pW (52 dB(A) re 20 µPa sound pressure)
• Noise level in recirculation mode:
  Max. normal use: 66 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure)
• Light Intensity: 101 lux
• Colour Temperature: 3500 K
• Electrical cable length 1.3 m
• Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
• Dimensions exhaust air (HxWxD): 617-947 x 900 x 488 mm
• Dimensions recirculating (HxWxD): 617-1057 x 900 x 488 mm
• Dimensions recirculating with CleanAir module (HxWxD):
  686 x 900 x 488 mm - mounting with outer chimney
  815-1145 x 900 x 488 mm - mounting with telescopic chimney
• Energy Efficiency Class: D (at a range of energy efficiency classes from A++ to E)*
• Blower Efficiency Class: E*
• Lighting Efficiency Class: A*
• Grease Filtering Efficiency Class: C*
• Average Energy Consumption: 53.5 kWh/year*

Optional accessories
