No matter whether you have an open-plan kitchen and living-room or a small, closed-off kitchen. We offer the optimum air volume for kitchens of all sizes. Air should be exchanged 6 to 12 times an hour to ensure a consistently pleasant ambience. To do so, the air delivery volume or power of the cooker hood must be appropriate to the room volume.
Additional information
Key performance features:
- Energy Efficiency Class: A (at a range of energy efficiency classes from A++ to E)*
- Extraction rate according to EN 61591 ø 15 cm:
max. Normal use 360 m³/h
Intensive 580 m³/h - Noise max. Normal Level: 61 dB*
Features

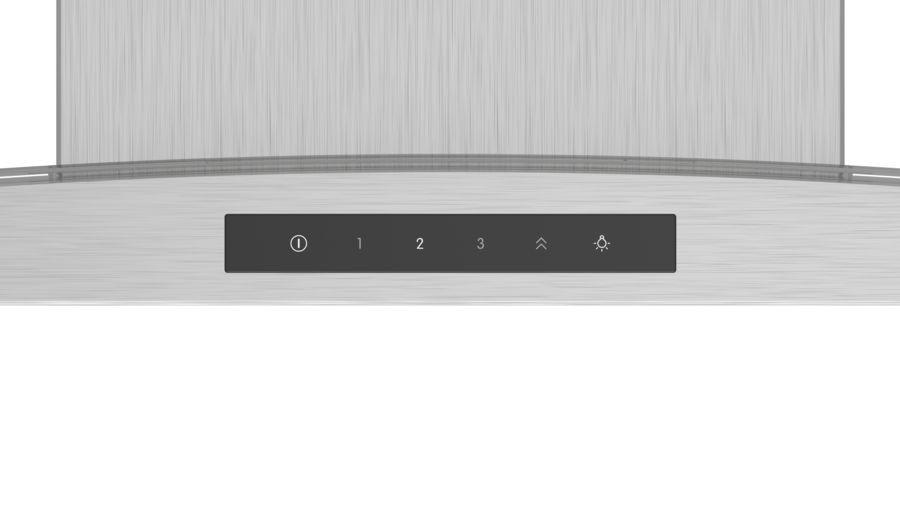

- TouchControl with Electronic display
- Electronic display
- 3 power levels & intensive setting
- 2 x 1.5W LED light
- Colour Temperature: 3500 K
- Automatic intensive revert (6mins)

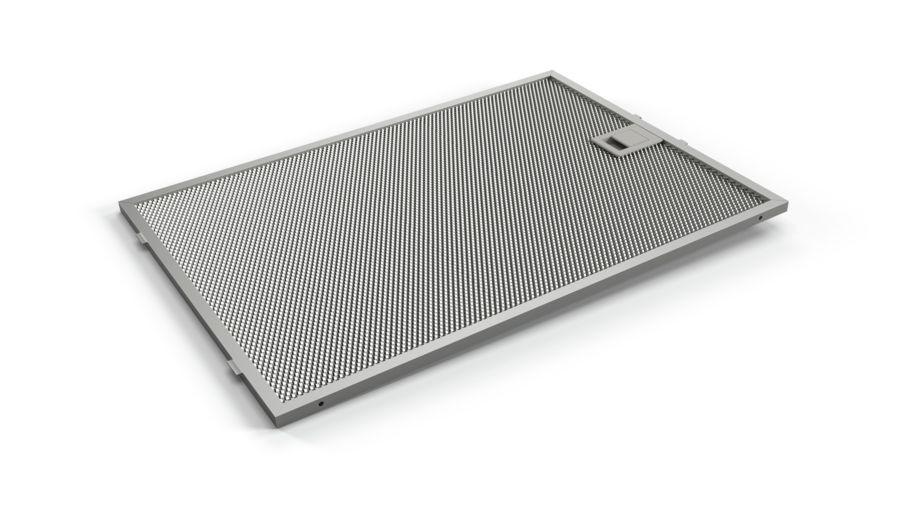

- 1 metal grease filter cassette
- Designed for wall mounted installation
Design
- Brushed steel
- Glass design
- Chimney extractor hood
- TouchControl
- Electronic control
Performance/technical information
- Suitable for ducted or recirculating operation
- For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
- Max. extraction rate: 580 m3/h
- Extraction rate according to EN 61591 ø 15 cm:
max. Normal use 360 m³/h
Intensive 580 m³/h - Extraction rate in recirculation mode:
Max. normal use: 280 m³/h
Intensive: 350 m³/h - Noise max. Normal Level: 61 dB*
- Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
Max. normal use: 61 dB(A) re 1 pW (49 dB(A) re 20 µPa sound pressure)
Intensive: 69 dB(A) re 1 pW (57 dB(A) re 20 µPa sound pressure) - Noise levels in recirculation mode:
Max. normal use: 72 dB(A) re 1 pW (60 dB(A) re 20 µPa sound pressure)
Intensive: 75 dB(A) re 1 pW (63 dB(A) re 20 µPa sound pressure) - Light Intensity: 240 lux
- Colour Temperature: 3500 K
- Electrical cable length 1.3 m
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Dimensions exhaust air (HxWxD): 617-947 x 900 x 488 mm
- Dimensions recirculating (HxWxD): 617-1057 x 900 x 488 mm
- Dimensions recirculating with CleanAir module (HxWxD):
686 x 900 x 488 mm - mounting with outer chimney
815-1145 x 900 x 488 mm - mounting with telescopic chimney - Energy Efficiency Class: A (at a range of energy efficiency classes from A++ to E)*
- Blower Efficiency Class: A*
- Lighting Efficiency Class: A*
- Grease Filtering Efficiency Class: B*
- Average Energy Consumption: 41.4 kWh/year*
Optional accessories
- Recirculating kit
