Neff

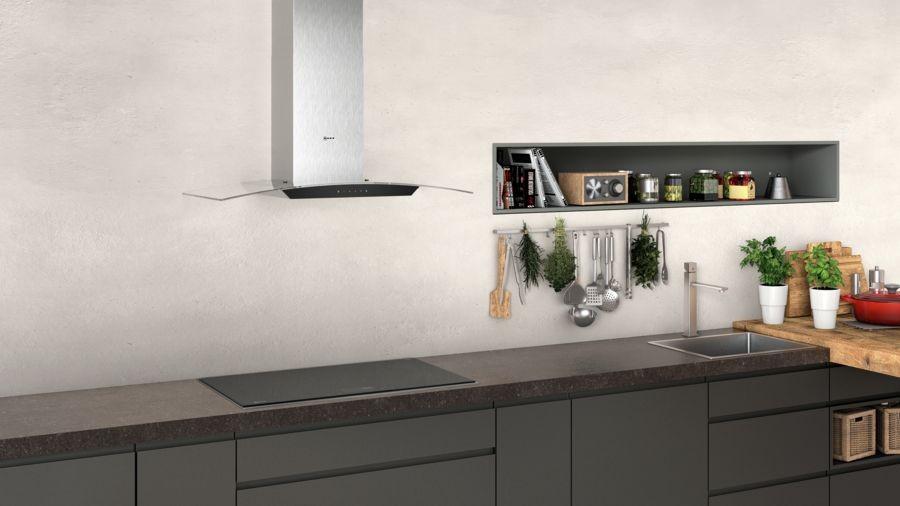

90cm Curved Glass Design Chimney Hood | D94AFM1N0B

90cm Curved Glass Design Chimney Hood | D94AFM1N0B

Rs. 629.00
Rs. 629.00
Sale Sold out

Key Features:

  • Energy Efficiency Class: A
  • 3 Power levels + intensive setting
  • Extraction Rate: max. Normal use 360 m³/h
  • Intensive 580 m³/h
  • 2 x 1.5w LED Light
  • 1 metal grease filter cassette
  • Touch control
  • Dimensions exhaust air (HxWxD): 617-947 x 900 x 488 mm

Description:

The curved glass canopy hood combines two design styles: transparent glass as well as the classic box hood design.

  • LED lighting: a clear illumination whilst cooking thanks to the energy-saving LED lights
  • TouchControl: thanks to the integrated flat surface of the control panel, adjustments can be easily made with just one finger
  • Intensive speed setting: increases the extraction rate when the steam gets intense
  • CleanAir: nothing but clean air thanks to the premium recirculation filter with high odour reduction (ca. 95%)
  • High extraction rate: Ensures a clear view while cooking thanks to efficient motor technology as either a ducted or recirculating solution.

Technical Specification

Key performance features:
  • Energy Efficiency Class: A (at a range of energy efficiency classes from A++ to E)*
  • Extraction rate according to EN 61591 ø 15 cm:
    max. Normal use 360 m³/h
    Intensive 580 m³/h
  • Noise max. Normal Level: 61 dB*
Features
  • Touch control
  • LED display
  • 3 speeds plus intensive
  • 2 x 1.5w LED Light
  • Colour Temperature: 3500 K
  • Automatic intensive revert (6mins)
  • 1 metal grease filter cassette
  • For wall mounted installation
Design
  • Stainless steel
  • Glass design
  • Chimney hood
  • Touch control
  • Electronic controls
Performance/technical information
  • Suitable for ducted extraction and recirculation
  • For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
  • Extraction rate according to EN 61591 ø 15 cm:
    max. Normal use 360 m³/h
    Intensive 580 m³/h
  • Max. extraction rate: 580 m3/h
  • Extraction rate in recirculation mode:
    Max. normal use: 280 m³/h
    Intensive: 350 m³/h
  • Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 61 dB(A) re 1 pW (49 dB(A) re 20 µPa sound pressure)
  • Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
    Max. normal use: 61 dB(A) re 1 pW (49 dB(A) re 20 µPa sound pressure)
    Intensive: 69 dB(A) re 1 pW (57 dB(A) re 20 µPa sound pressure)
  • Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 61 dB (A) re 1pW
  • Noise max. Normal Level: 61 dB*
  • Noise levels in recirculation mode:
    Max. normal use: 72 dB(A) re 1 pW (60 dB(A) re 20 µPa sound pressure)
    Intensive: 75 dB(A) re 1 pW (63 dB(A) re 20 µPa sound pressure)
  • Light Intensity: 240 lux
  • Colour Temperature: 3500 K
  • Electrical cable length 1.3 m
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
  • Dimensions exhaust air (HxWxD): 617-947 x 900 x 488 mm
  • Dimensions recirculating (HxWxD): 617-1057 x 900 x 488 mm
  • Dimensions recirculating with CleanAir module (HxWxD):
    686 x 900 x 488 mm - mounting with outer chimney
    815-1145 x 900 x 488 mm - mounting with telescopic chimney
  • Energy Efficiency Class: A (at a range of energy efficiency classes from A++ to E)*
  • Blower Efficiency Class: A*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: B*
  • Average Energy Consumption: 41.4 kWh/year*
Optional accessories
  • Recirculating kit Z5270X0
