90cm Downdraft Hood | D95DAP8N0B

Technical Description:

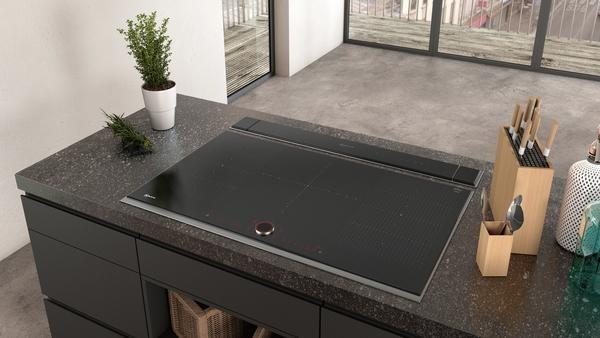

The quiet Downdraft hood with a high extraction rate can be extended from the worktop whenever steam and culinary odours arise.

• Extendable – Emerges only when needed and sits neatly behind the hob for a clear view in the kitchen
• Space-saving miracle – Fits neatly behind the hob for more use of the cabinet space underneath
• Flexible installation – A range of installation options make the most of your cabinet space
• Quiet operation – Particularly quiet due to its noise-optimised design
• Integrated lighting – Our downdraft hood with integrated LED lights for clear lighting over your hob

Key performance features:

• Energy Efficiency Class: A (at a range of energy efficiency classes from A+++ to D)
• Extraction rate according to EN 61591 ø 15 cm: max. Normal use 530 m³/h Intensive 750 m³/h
• Noise max. Normal Level: 62 dB*

Features:

• Touch control for extractor speeds and light
• 3 power levels and 2 intensive settings
• 1 x 7W LED-module
• Automatic after running (10 minutes)
• 2 metal grease filter cassettes
• Saturation indicator for metal and charcoal filter

Design:

• Worktop ventilation
• Downdraft for installation in worktops
• Extension height 300 mm
• Rim ventilation
• Electronic controls

Performance/technical information:

• Suitable for ducted extraction and recirculation
• For recirculated extraction recirculating kit (accessory) needed
• In recirculation mode no combination with gas hobs allowed.
• Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air: Max. normal use: 62 dB(A) re 1 pW Intensive: 67 dB(A) re 1 pW
• Extraction rate in recirculation mode: Max. normal use: 452 m³/h Intensive: 500 m³/h
• Noise levels in recirculation mode: Max. normal use: 72 dB(A) re 1 pW Intensive: 75 dB(A) re 1 pW
• Power rating: 317 W
• Light Intensity: 203 lux
• Colour Temperature: 3500 K
• Electrical cable length 1.5 m
• Blower Efficiency Class: A*
• Lighting Efficiency Class: A*
• Grease Filtering Efficiency Class: D*
• Average Energy Consumption: 54.2 kWh/year*
• Diameter pipe Ø 150 mm (Ø 150 mm enclosed)
• Dimensions exhaust air (HxWxD): 735-1035 x 918 x 268 mm
• Dimensions recirculating (HxWxD): 735-1035 x 918 x 268 mm

Optional accessories:

• Recirculating kit Z92IDM9X0
