Neff

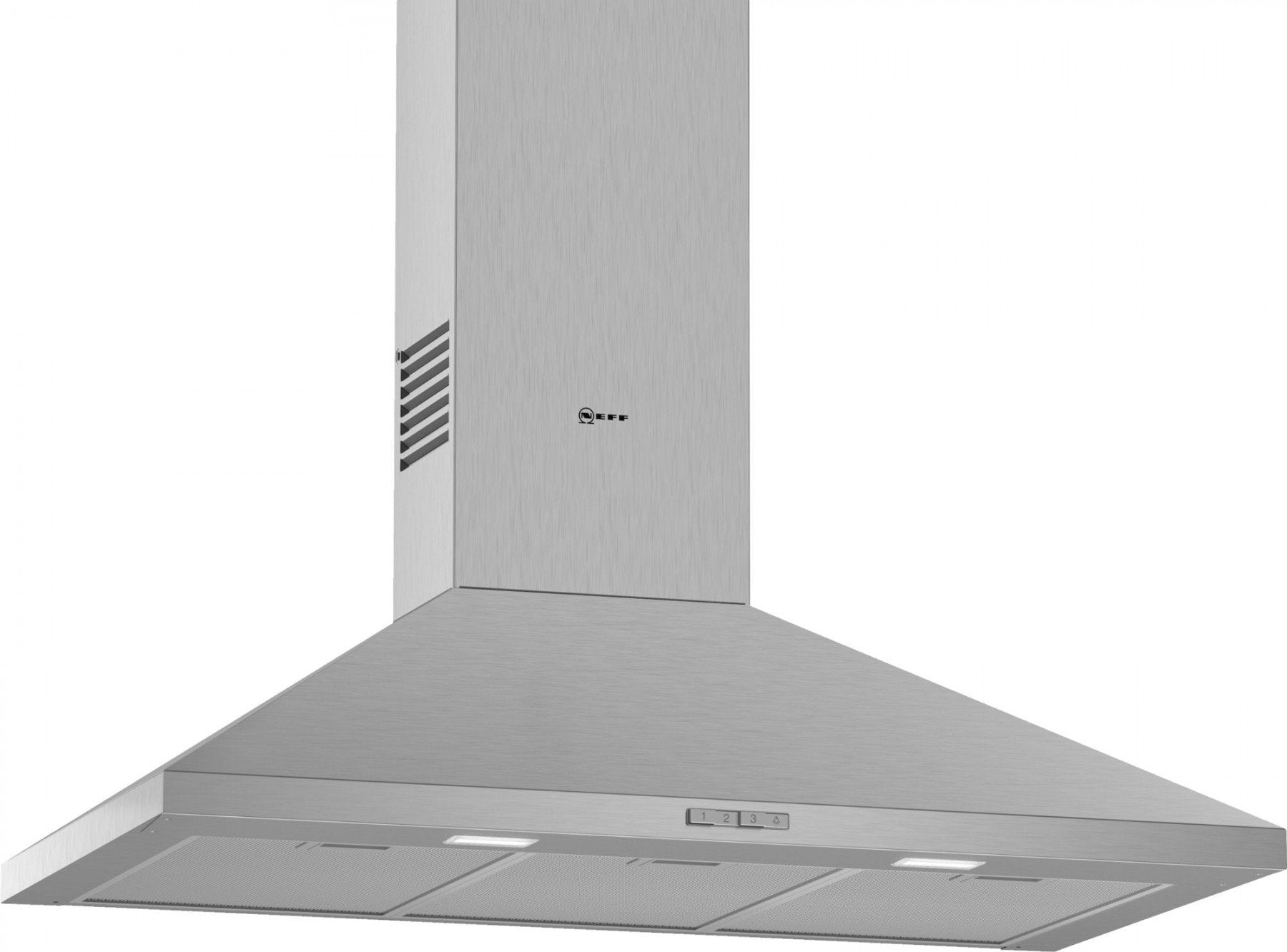

90cm Pyramid Design Chimney Hood | D92PBC0N0B

90cm Pyramid Design Chimney Hood | D92PBC0N0B

Rs. 329.00
Rs. 329.00
Sale Sold out

Key Features:

  • Energy Efficiency Class: C
  • 3 Power levels
  • Max Extraction Rate 360 m³/h
  • 2 x 1.5w LED Light
  • 3 metal grease filter cassettes
  • Push button operation
  • Dimensions exhaust air (HxWxD): 799-975 x 900 x 500 mm

Description:

Key performance features:
  • Energy Efficiency Class: C (at a range of energy efficiency classes from A++ to E)*
  • Max. extraction rate: 360 m3/h
  • Noise max. Normal Level: 65 dB*
Features

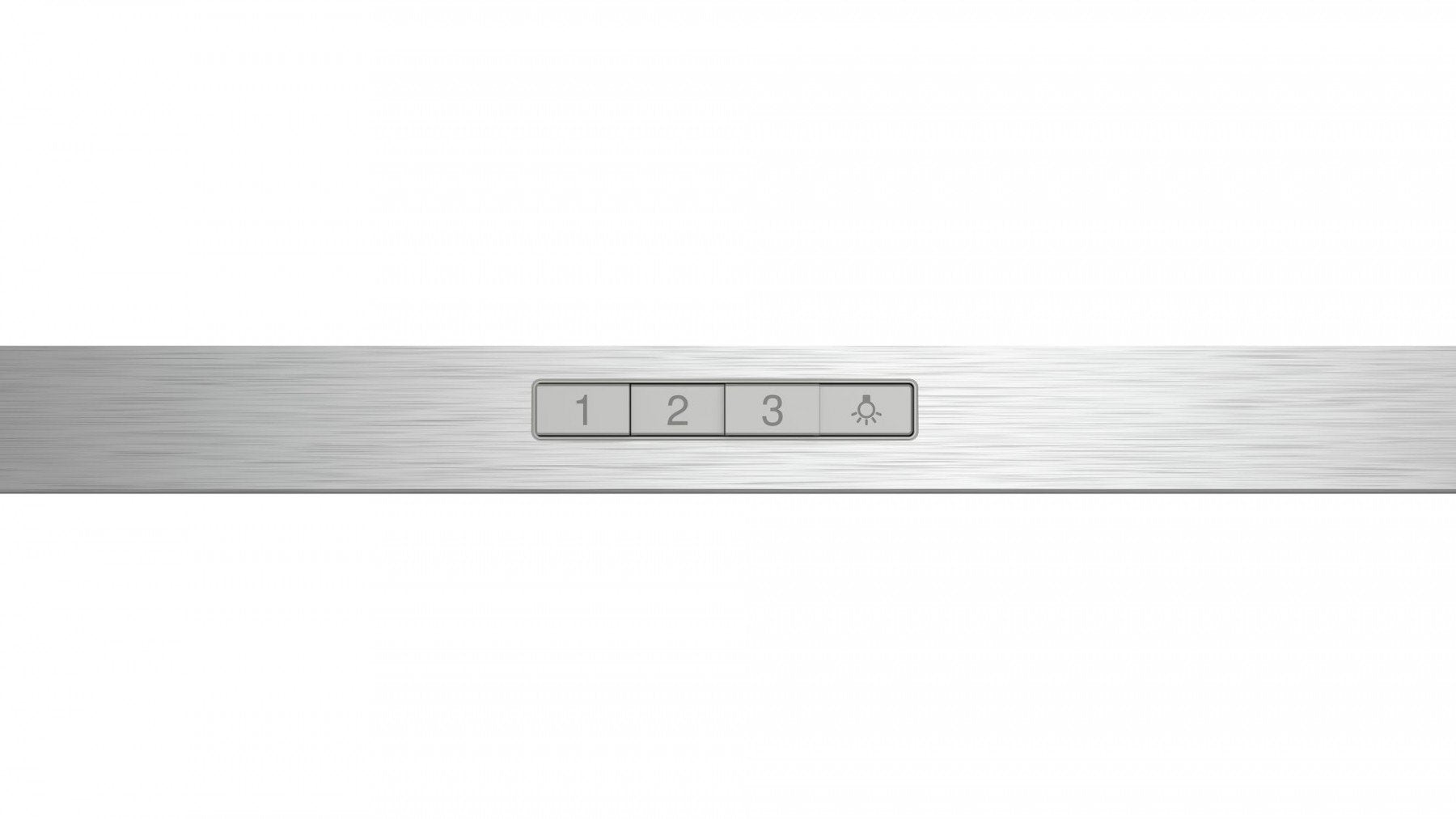

  • Push button control operation
  • 3 power levels
  • 2 x 1.5w LED Light
  • Colour Temperature: 3500 K

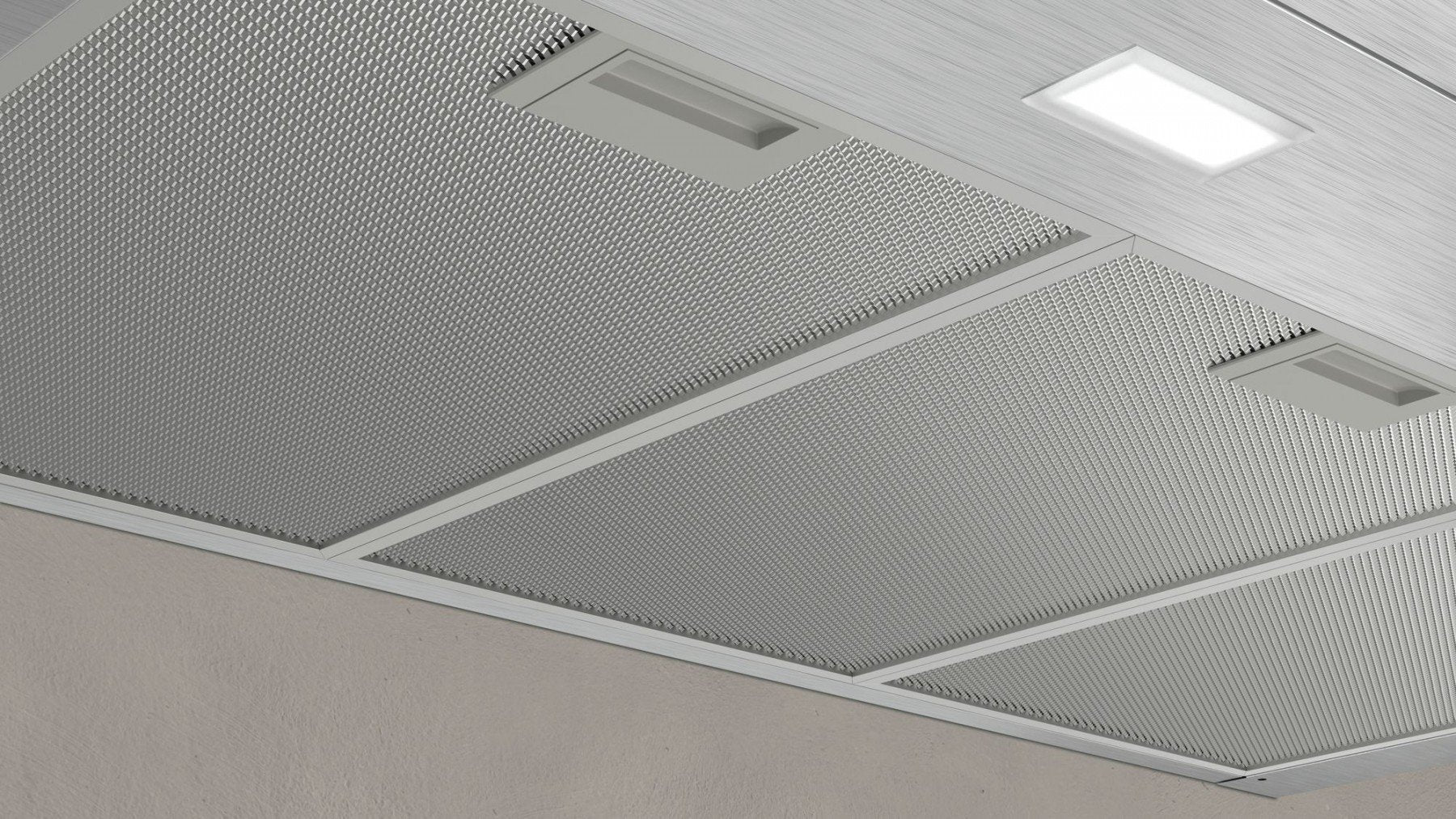

  • 3 metal grease filter cassettes
  • For wall mounted installation
Design
  • Stainless steel
  • Pyramid
  • Chimney hood
  • Push button control operation
  • Mechanical controls
Performance/technical information
  • Suitable for ducted extraction and recirculation
  • For recirculated extraction recirculating kit (accessory) needed
  • Max. extraction rate: 360 m3/h
  • Maximum extraction rate exhaust air 360 m³/h according to EN 61591
  • Extraction rate in recirculation mode:
    Max. normal use: 200 m³/h
  • Noise max. Normal Level: 65 dB*
  • Noise level according to EN 60704-3 and EN 60704-2-13 at max. normal use exhaust air: 65 dB(A) re 1 pW (53 dB(A) re 20 µPa sound pressure)
  • Noise level in recirculation mode:
    Max. normal use: 67 dB(A) re 1 pW (55 dB(A) re 20 µPa sound pressure)
  • Light Intensity: 94 lux
  • Colour Temperature: 3500 K
  • Electrical cable length 1.3 m
  • Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
  • Dimensions exhaust air (HxWxD): 799-975 x 900 x 500 mm
  • Dimensions recirculating (HxWxD): 799-975 x 900 x 500 mm
  • Energy Efficiency Class: C (at a range of energy efficiency classes from A++ to E)*
  • Blower Efficiency Class: E*
  • Lighting Efficiency Class: A*
  • Grease Filtering Efficiency Class: D*
  • Average Energy Consumption: 51.3 kWh/year*
Optional accessories
  • Recirculating kit Z5138X5
