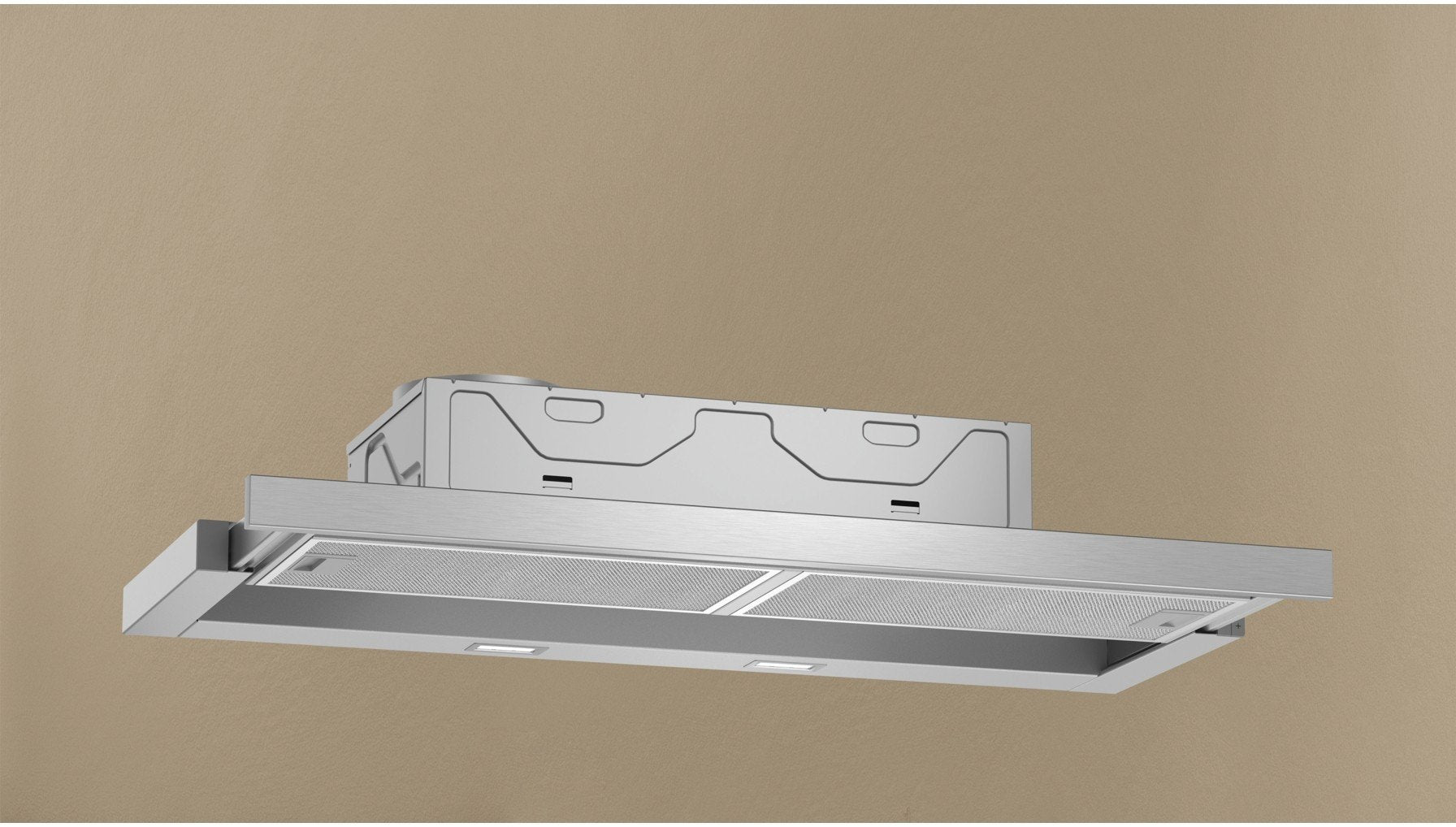

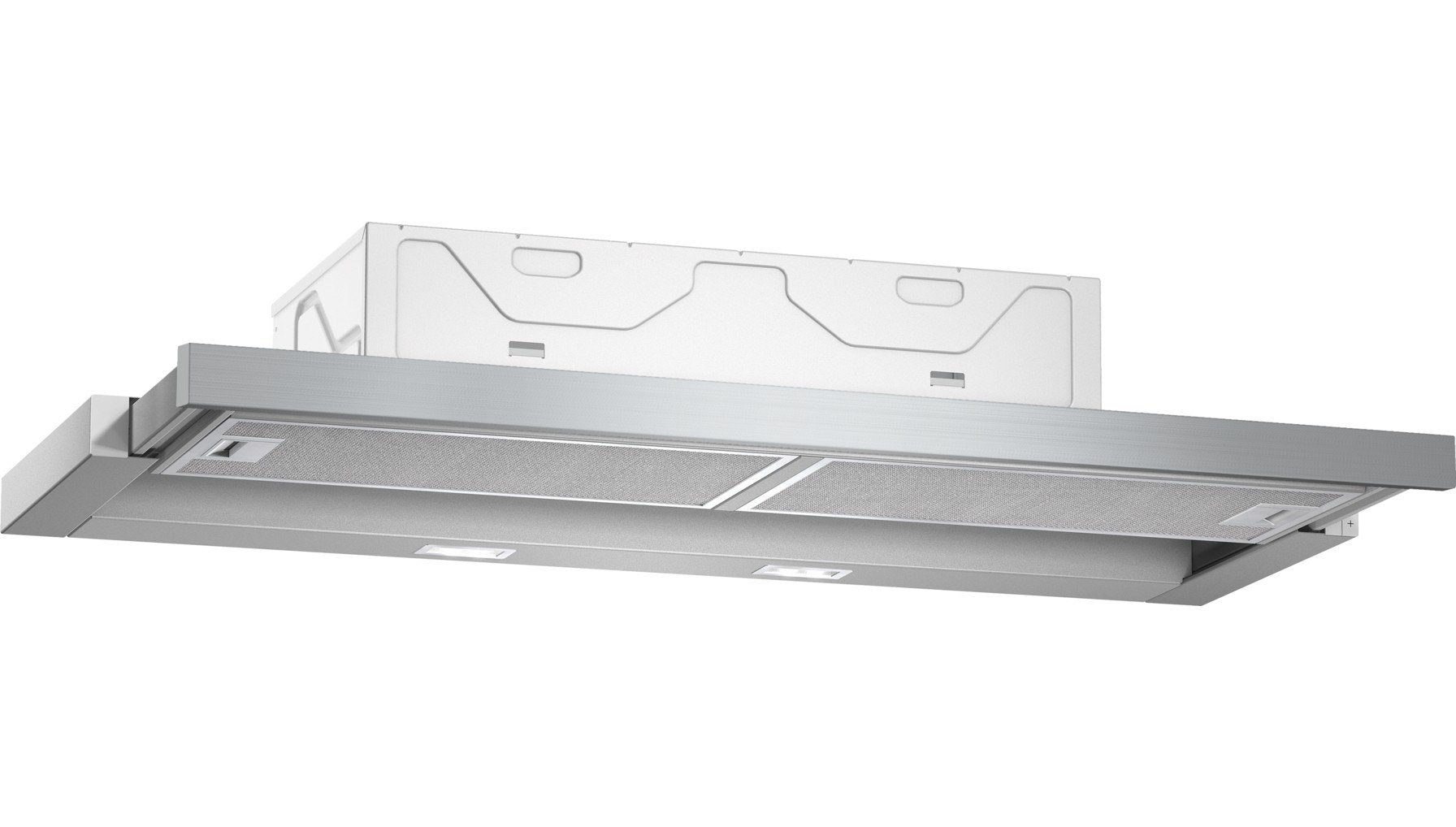

90cm Telescopic Chimney Hood | D49ED22N0B

Key Features:

• - 420 m³/h extraction rate
• - 3 speeds + 1 Intensive
• - 2 x LED lights
• - Soft touch electronic controls
• Built-in dimensions (HxWxD): 162 x 526 x 290 mm

Description:

Features

• LED display

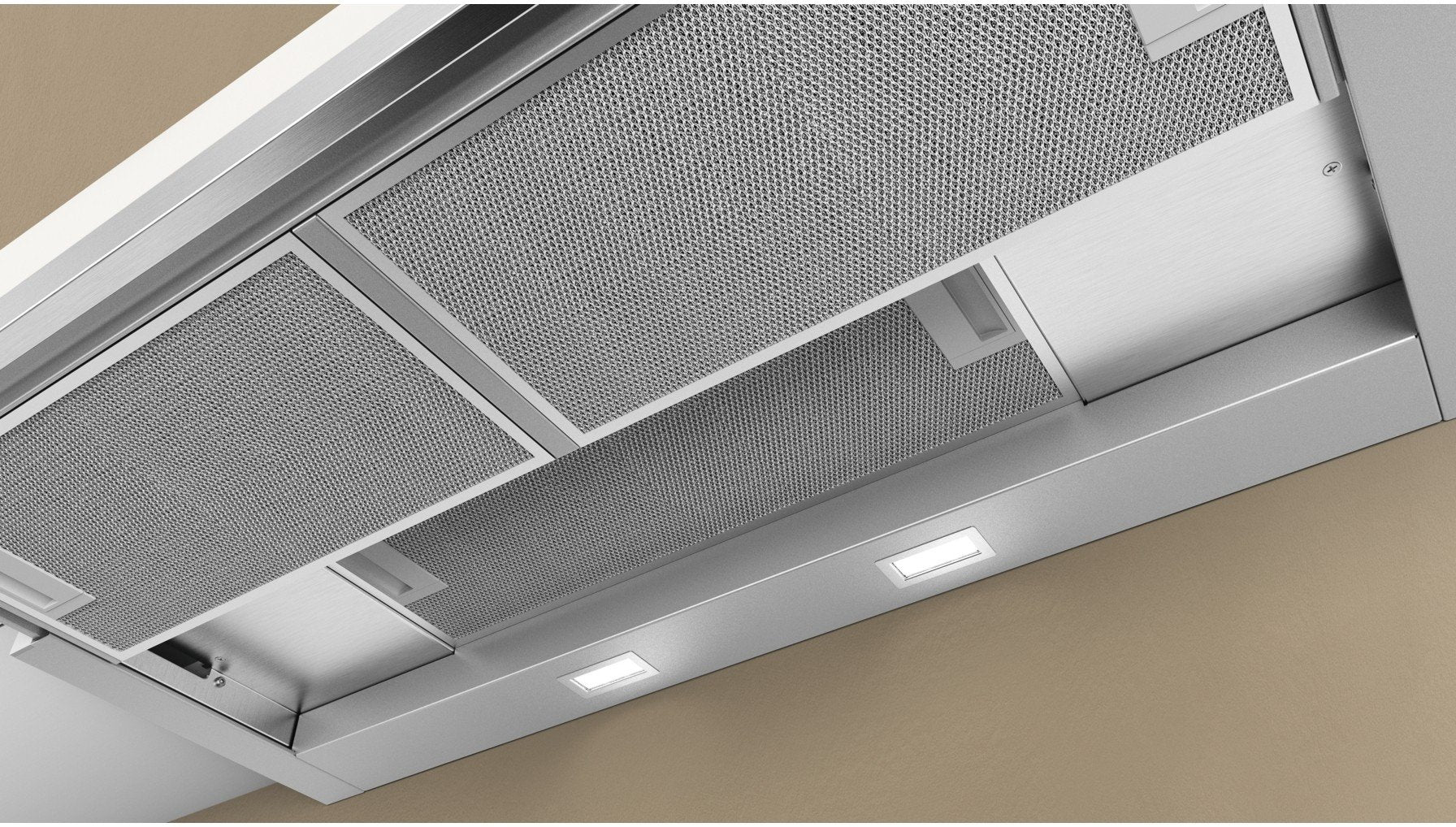

• 2 x LED lights
• 3 metal grease filter cassettes
• 3 speeds plus intensive
• Automatic after running (10 minutes)
• Automatic intensive revert (6mins)

Design

• 90 cm wide
• Telescopic hood
• Silver metallic grey

Standard design

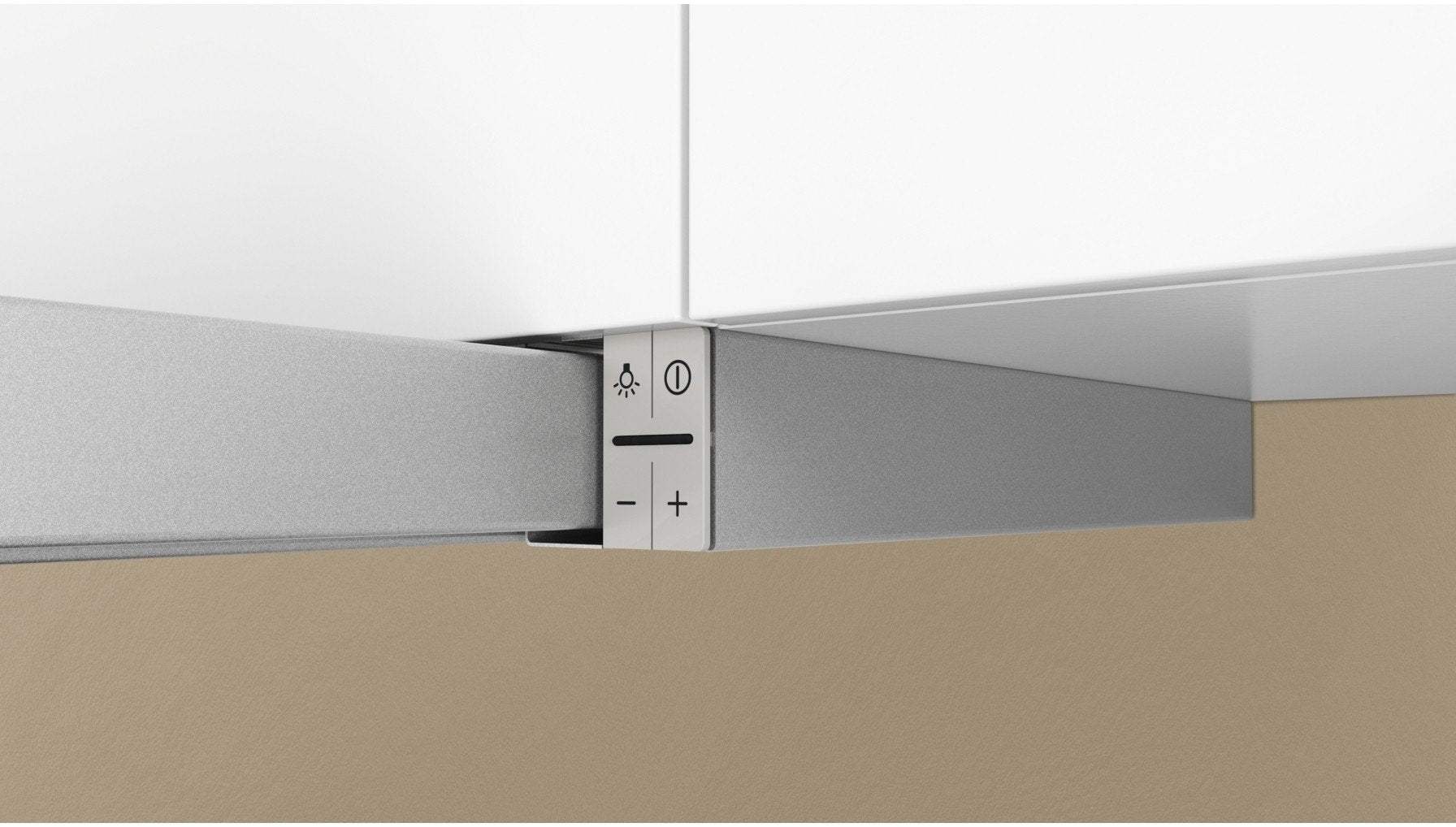

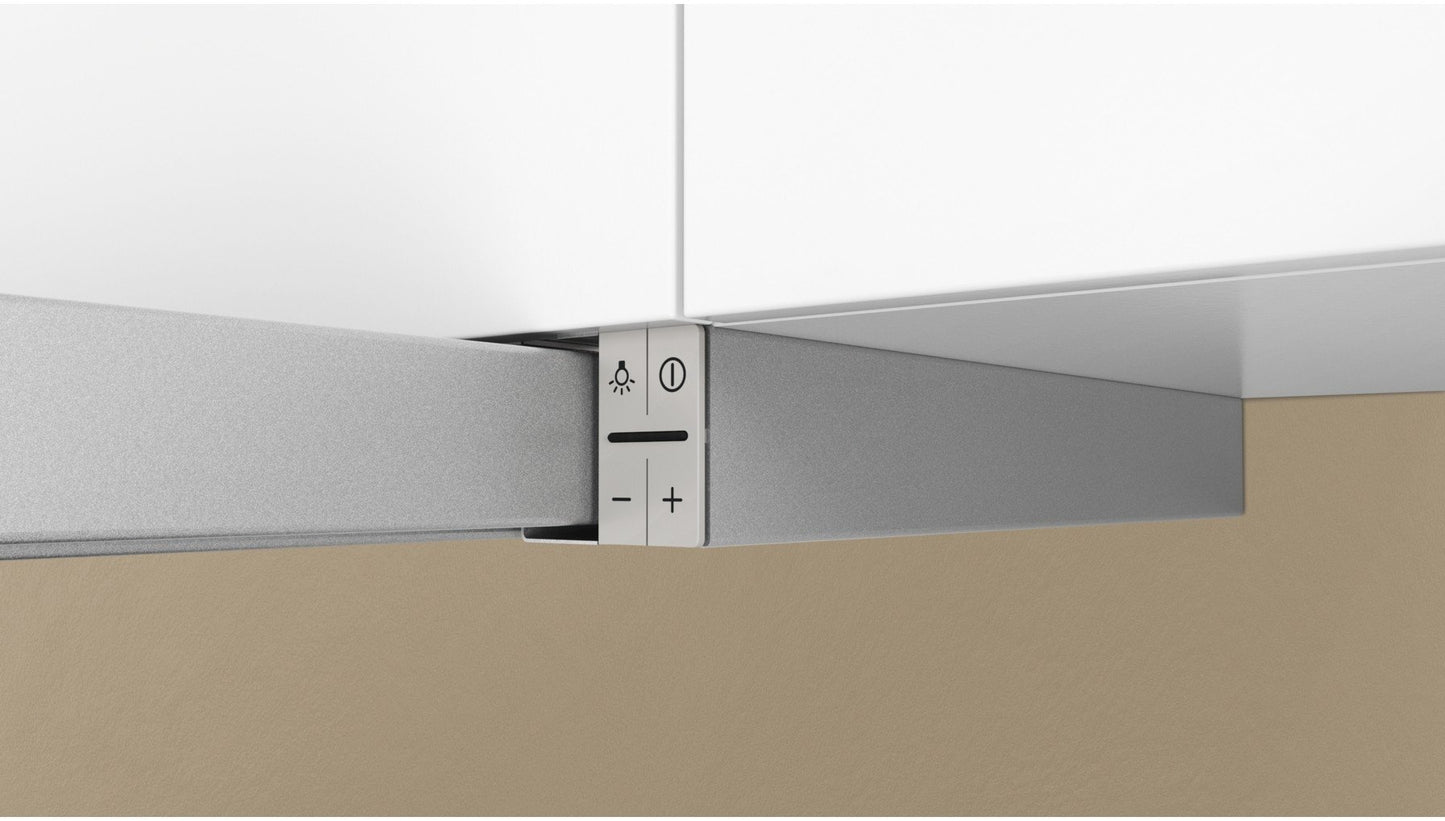

• Soft touch control
• Electronic controls
• Neutral white lights

Performance/technical information

• Telescopic standard installation
• Suitable for ducted extraction and recirculation
• For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed
• Extraction rate according to EN 61591 ø 15 cm:
• max. Normal use 270 m³/h
• Intensive 420 m³/h
• Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 60 dB (A) re 1pW
• Noise max. Normal Level: 60 dB
• Light Intensity: 569 lux
• Colour Temperature: 3500 K
• Electrical cable lenght 1.75 m
• Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
• Dimensions exhaust air (HxWxD): 203-203 x 898 x 290 mm
• Dimensions recirculating (HxWxD): 203-203 x 898 x 290 mm
• built-in dimensions (HxWxD): 162 x 526 x 290 mm
• Energy Efficiency Class: A
• Blower Efficiency Class: A
• Lighting Efficiency Class: A
• Grease Filtering Efficiency Class: C
• Average Energy Consumption: 20 kWh/year
