90cm Telescopic Chimney Hood | D49ML54N0B

• 700 m³/h extraction rate
• ClimateControl sensor
• 7 segment LED display
• 3 speeds + 2 Intensive
• 2 x LED lights
• Soft touch electronic controls
• SoftLight with dimmer function
• Additional noise insulation / Noise reduction function
• Dimensions (H)42.6 x (W)89.8 x (D)29.0

Description:

Features

7 segment LED display

2 x LED lights

softLight with dimmer function

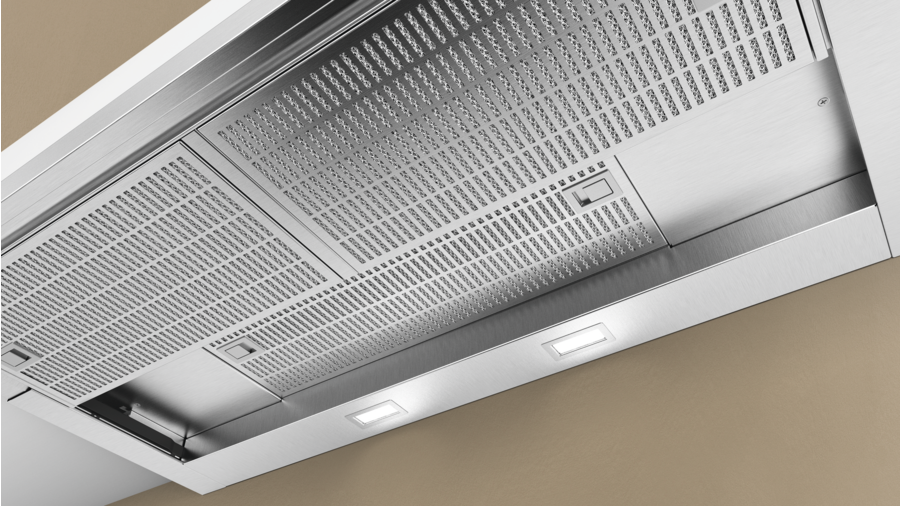

3 metal grease filter cassettes

Saturation indicator for grease filter

metal grease filter

3 power levels and 2 intensive settings

Interval operation

Automatic after running (10 minutes)

Automatic intensive revert (6mins)

Additional noise insulation

Noise reduction function

Design

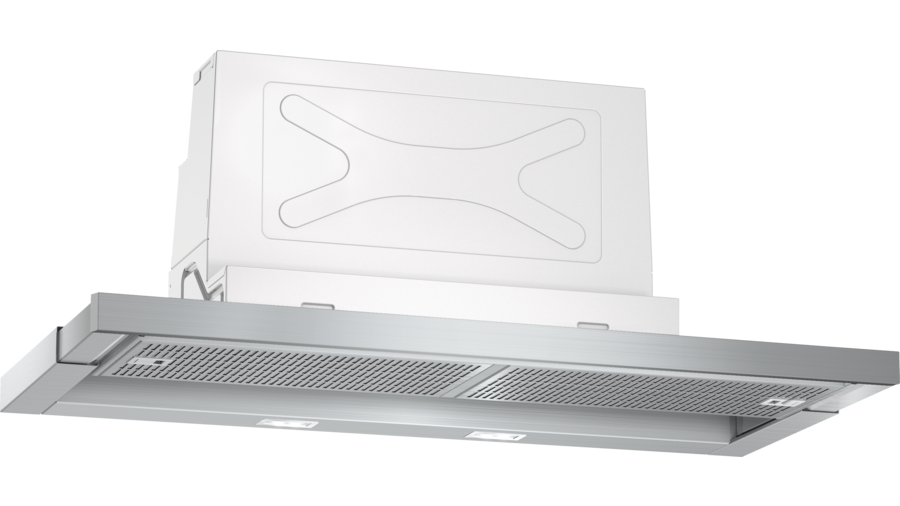

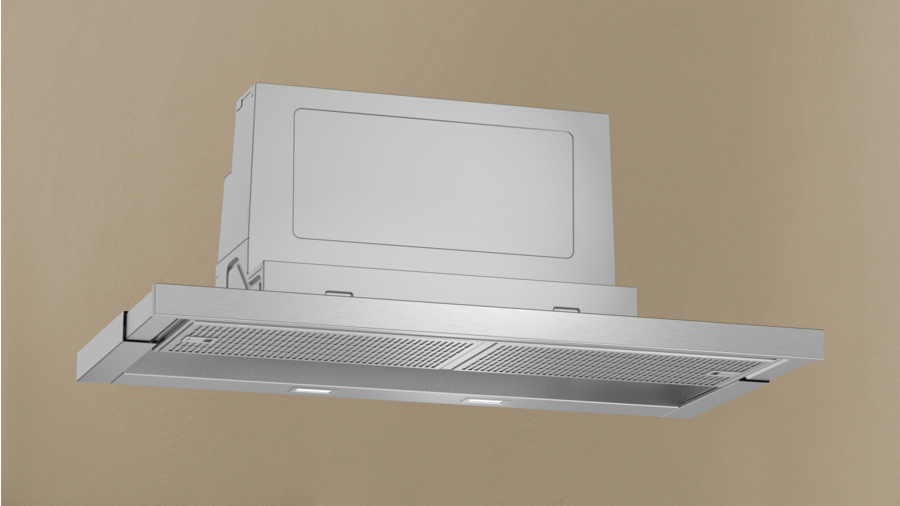

90 cm wide Telescopic hood

Stainless steel Standard design

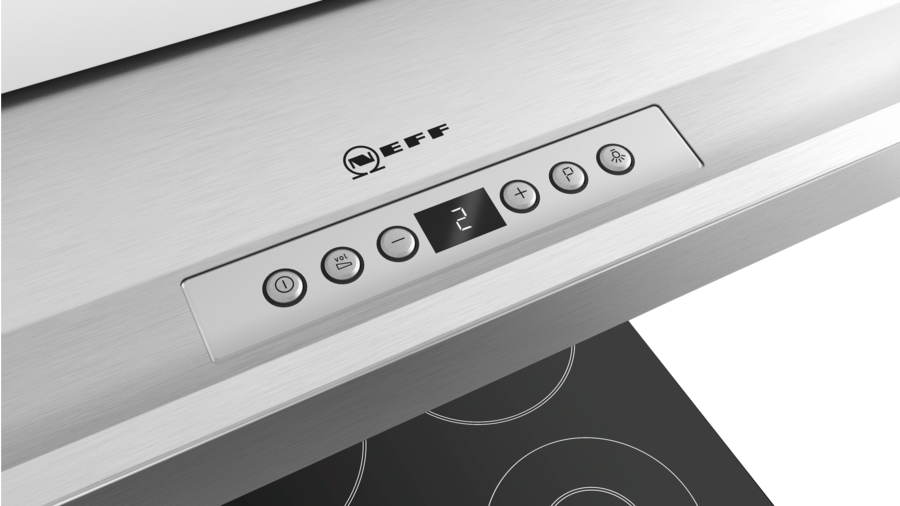

Soft touch control

Electronic controls

Neutral white lights

Performance/technical information

Telescopic comfort installation

Suitable for ducted extraction and recirculation

For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed

Extraction rate according to EN 61591 ø 15 cm:

max. Normal use 400 m³/h

Intensive 700 m³/h

Power rating: 146 W

Noise level according to EN 60704-3 and EN 60704-2-13 at maximum normal setting: extraction rate: 54 dB (A) re 1pW

Noise max. Normal Level: 54 dB

Light Intensity: 569 lux

Colour Temperature: 3500 K

Electrical cable lenght 1.75 m

Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

Dimensions exhaust air (HxWxD): 426-426 x 898 x 290 mm

Dimensions recirculating (HxWxD): 426-426 x 898 x 290 mm

built-in dimensions (HxWxD): 385 x 524 x 290 mm

Energy Efficiency Class: A

Blower Efficiency Class: A

Lighting Efficiency Class: A

Grease Filtering Efficiency Class: B

Average Energy Consumption: 34.7 kWh/year
