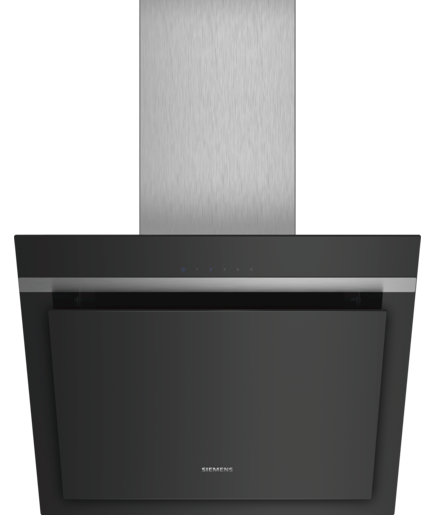

iQ300 60cm Angled Chimney Hood | LC67KHM60B

Key Features:

• 660 m3/h extraction rate
• 3 x power levels plus intensive setting
• energy-saving LED lighting
• 2 x metal grease filters
• For wall mounted installation
• Dimensions exhaust air (HxWxD): 928-1198 x 590 x 499 mm

Description:

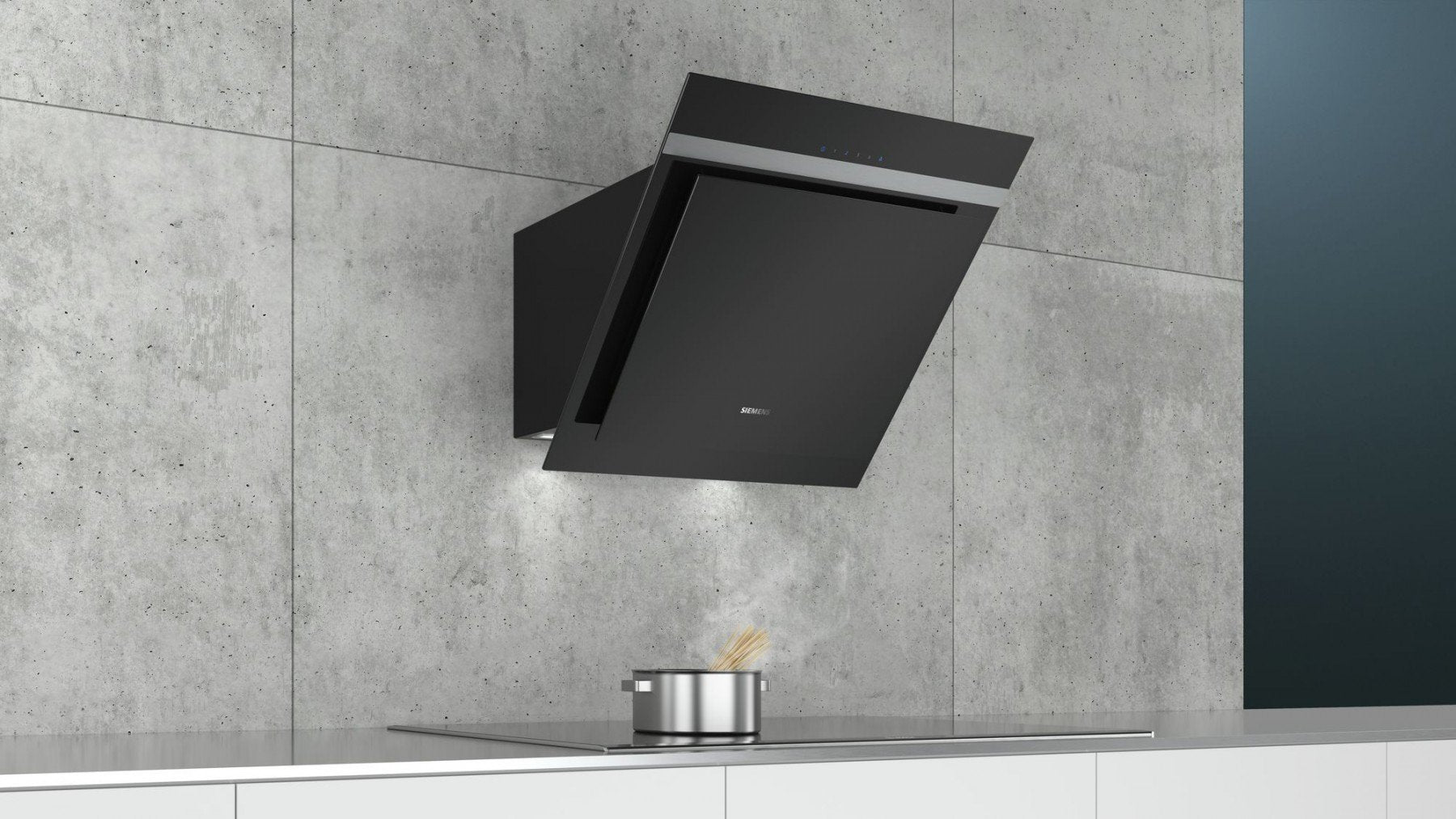

Angled extractor hood with outstanding design and high extraction rate for a powerful performance.

The powerful motor with an high extraction rate of 660 m³/h for fresh air in your kitchen.

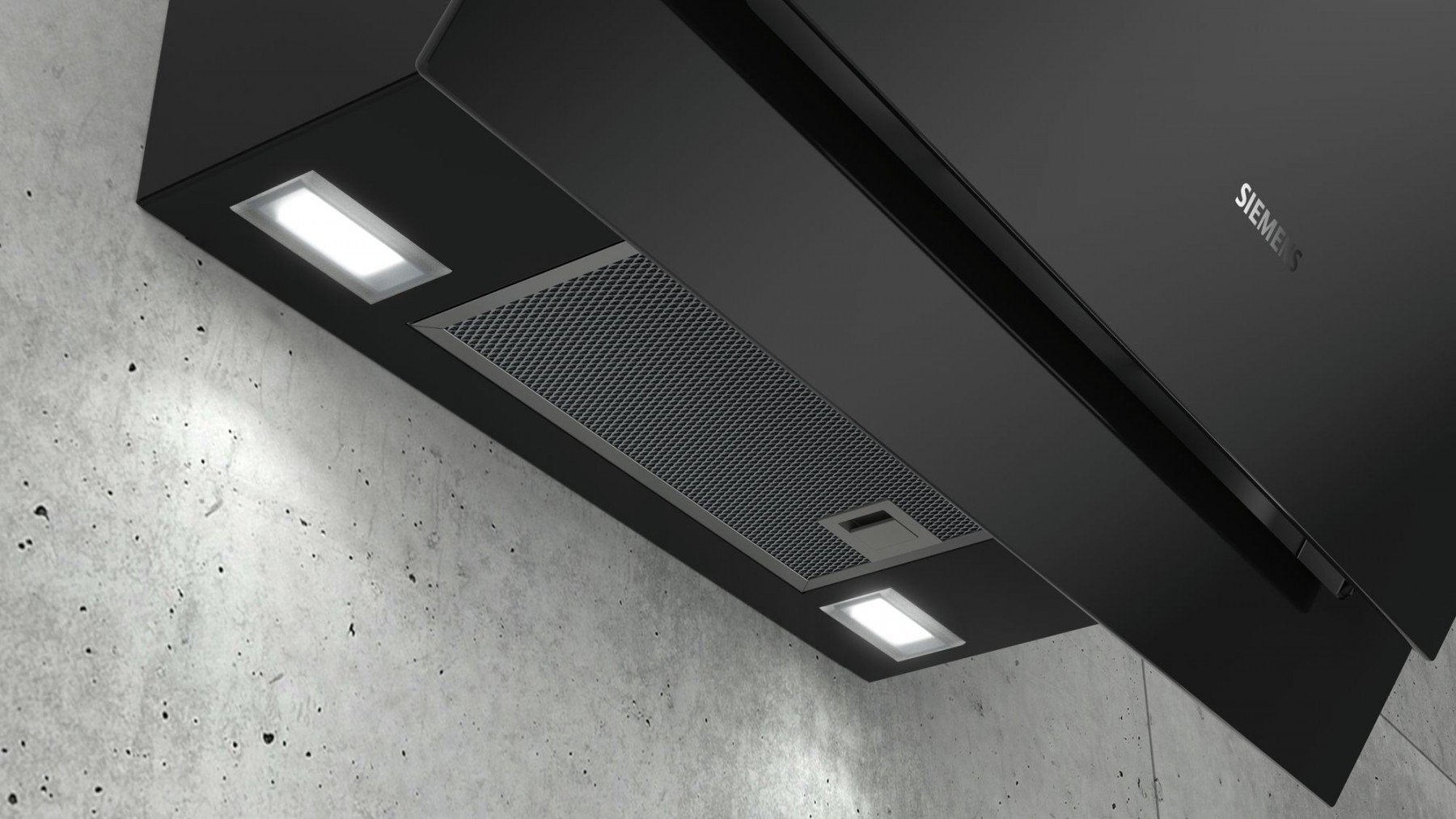

The energy-saving LED lighting ensures optimal visibility when cooking.

When required the intensive setting temporarily increases the extraction rate, with automatic revert after 6 min.

At 57 dB the hood is especially quiet when being used

Key performance features:

Energy Efficiency Class: A

Extraction rate according to EN 61591 ø 15 cm:

max. Normal use 400 m³/h

Intensive 600 m³/h

Noise max. Normal Level: 57 dB

Features

3 x power levels plus intensive setting

2 x 3W LED

Colour Temperature: 3500 K

Twin channel high performance fan motor

Automatic intensive revert (6mins)

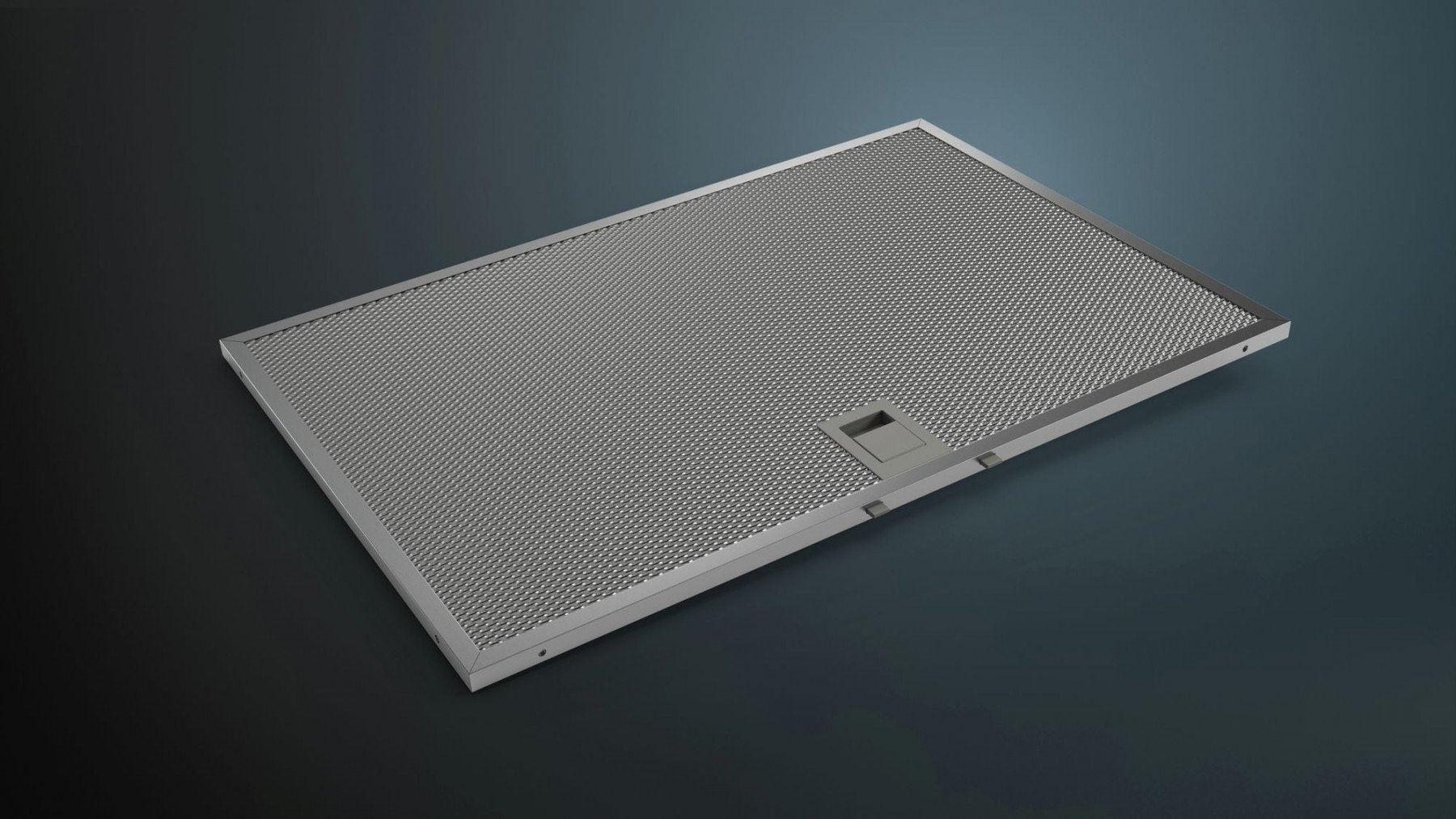

2 x metal grease filter cassettes

easy to clean Inner frame

For wall mounted installation

Rim ventilation

Angled design

Chimney hood

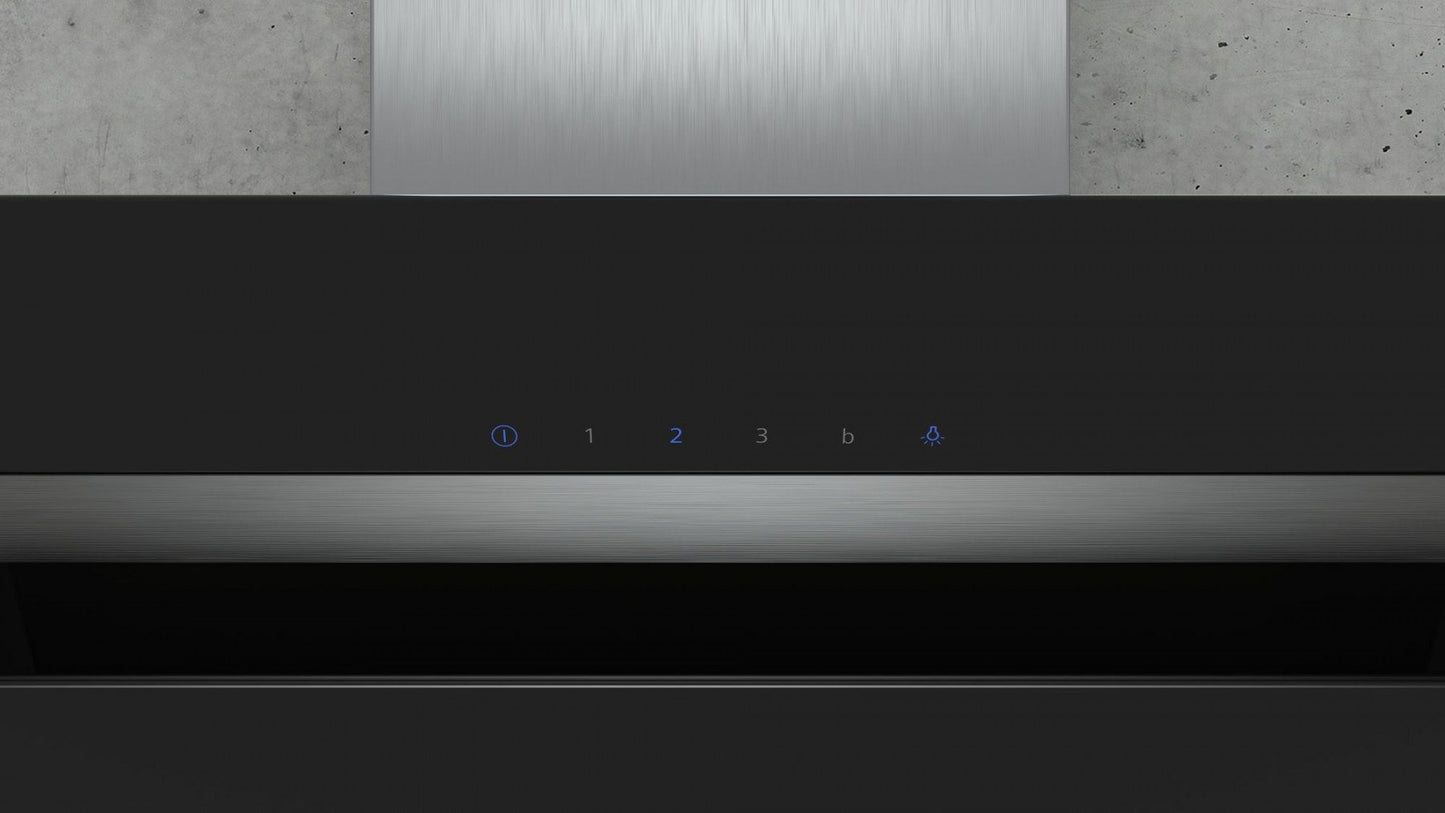

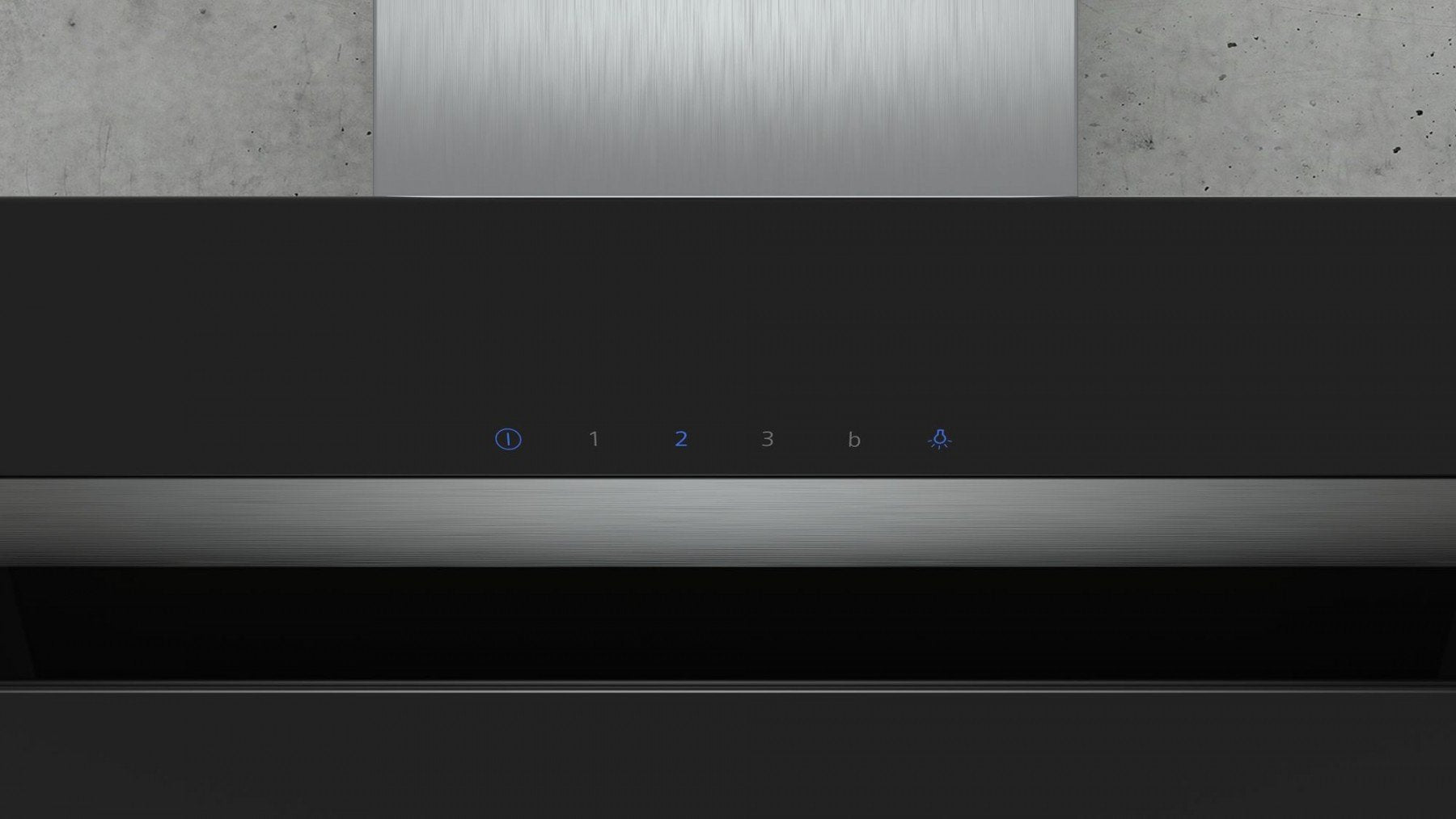

Touch control for extractor speeds and light

Electronic control

Performance/technical information

Suitable for ducted and re-circulating operation

In recirculation operation chimless use possible

For recirculated extraction a recirculating kit or a CleanAir recurculation kit (accessory) is needed

Easy installation system

Max. extraction rate: 660 m3/h

Extraction rate according to EN 61591 ø 15 cm:

max. Normal use 400 m³/h

Intensive 660 m³/h

Extraction rate in recirculation mode:

Max. normal use: 380 m³/h

Intensive: 570 m³/h

Noise max. Normal Level: 57 dB

Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:

Max. normal use: 57 dB(A) re 1 pW (43dB(A) re 20 µPa sound pressure)

Intensive: 66 dB(A) re 1 pW (52 dB(A) re 20 µPa sound pressure)

Noise levels in recirculation mode:

Max. normal use: 67 dB(A) re 1 pW (54 dB(A) re 20 µPa sound pressure)

Intensive: 74 dB(A) re 1 pW (61 dB(A) re 20 µPa sound pressure)

Light Intensity: 90 lux

Colour Temperature: 3500 K

Electrical cable length 1.3 m

Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

Dimensions exhaust air (HxWxD): 928-1198 x 590 x 499 mm

Dimensions recirculating, chimney (HxWxD): 988-1258 x 590 x 499 mm

Dimensions recirculating, chimless (HxWxD): 452 mm x 590 x 499 mm

Dimensions recirculating with CleanAir module (HxWxD):

1118 x 590 x 499 mm - mounting with outer chimney

1188-1458 x 590 x 499 mm - mounting with telescopic chimney

Energy Efficiency Class: A

Blower Efficiency Class: A

Lighting Efficiency Class: A

Grease Filtering Efficiency Class: C

Average Energy Consumption: 52.5 kWh/year
