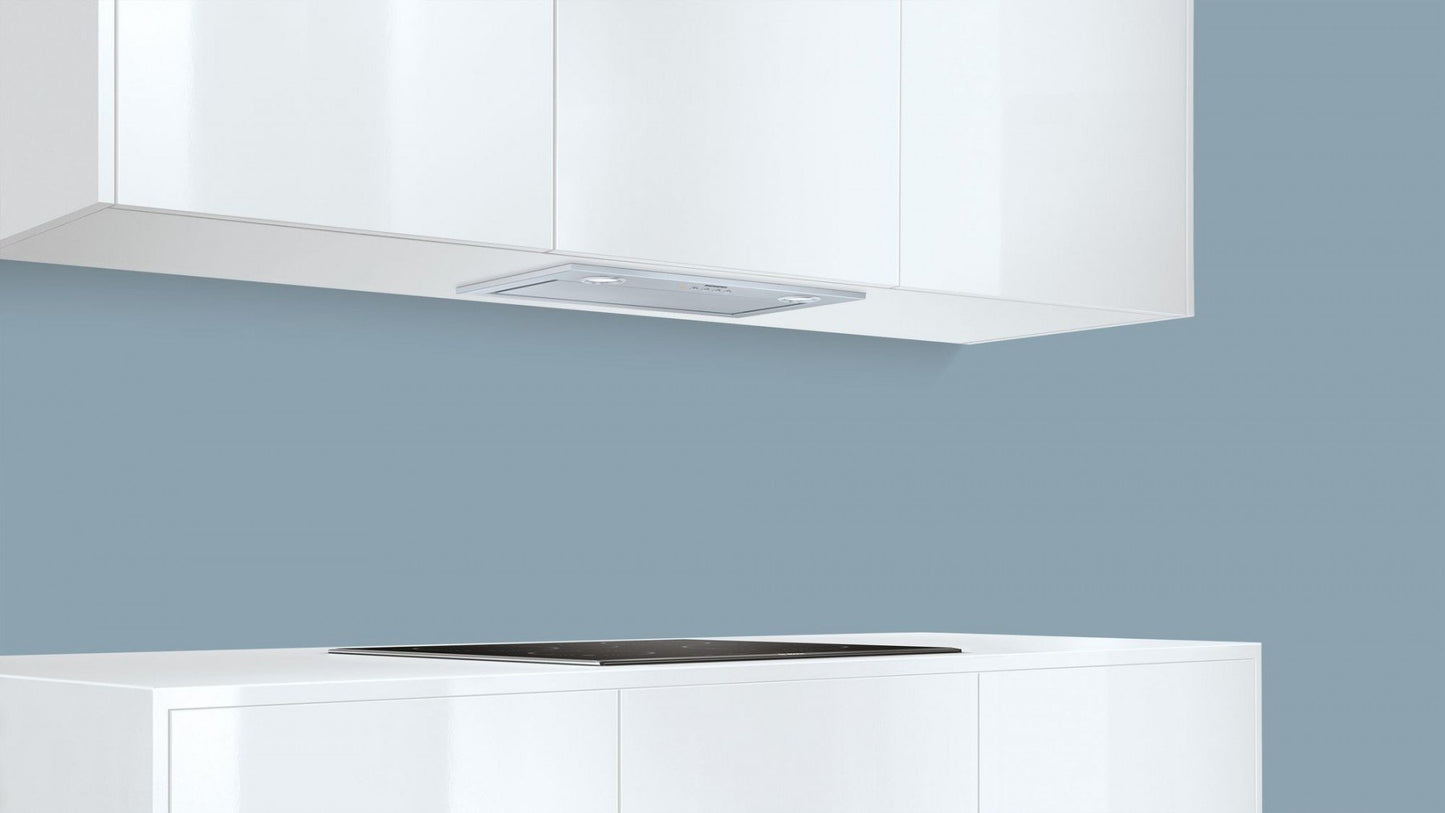

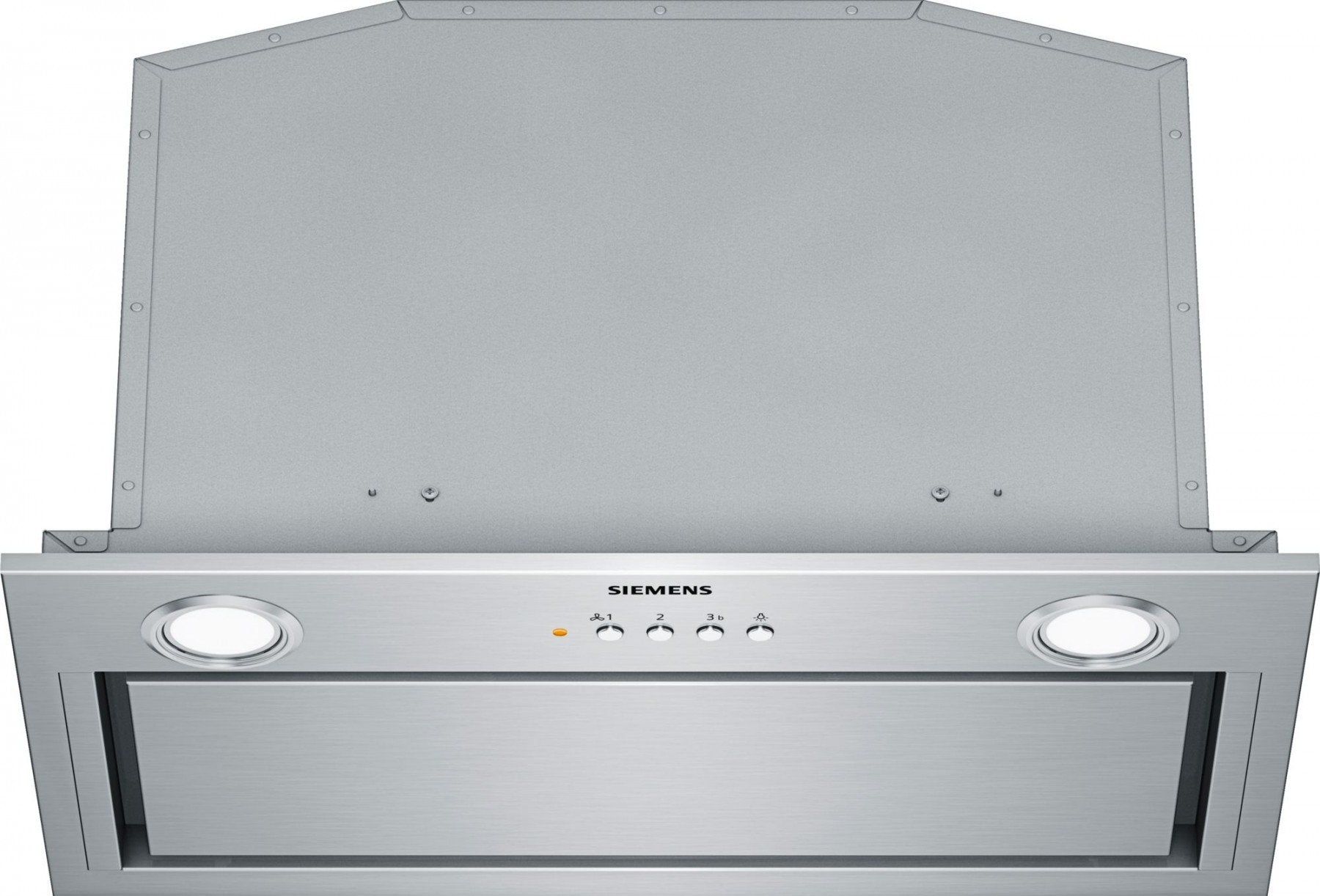

iQ500 52cm Canopy Extractor Hood | LB57574GB

Key Features:

• 610 m3/h extraction rate
• 3 Speeds + Intensive
• 2 x 1W LED lights
• 1 x metal grease filter cassette
• Electronic control via Soft touch button control
• Dimensions: (W x D): 52cm x 30cm

Description:

Design

52 cm wide

Stainless Steel

Electronic control via Soft touch button control

For installation in a kitchen cabinet

Key features

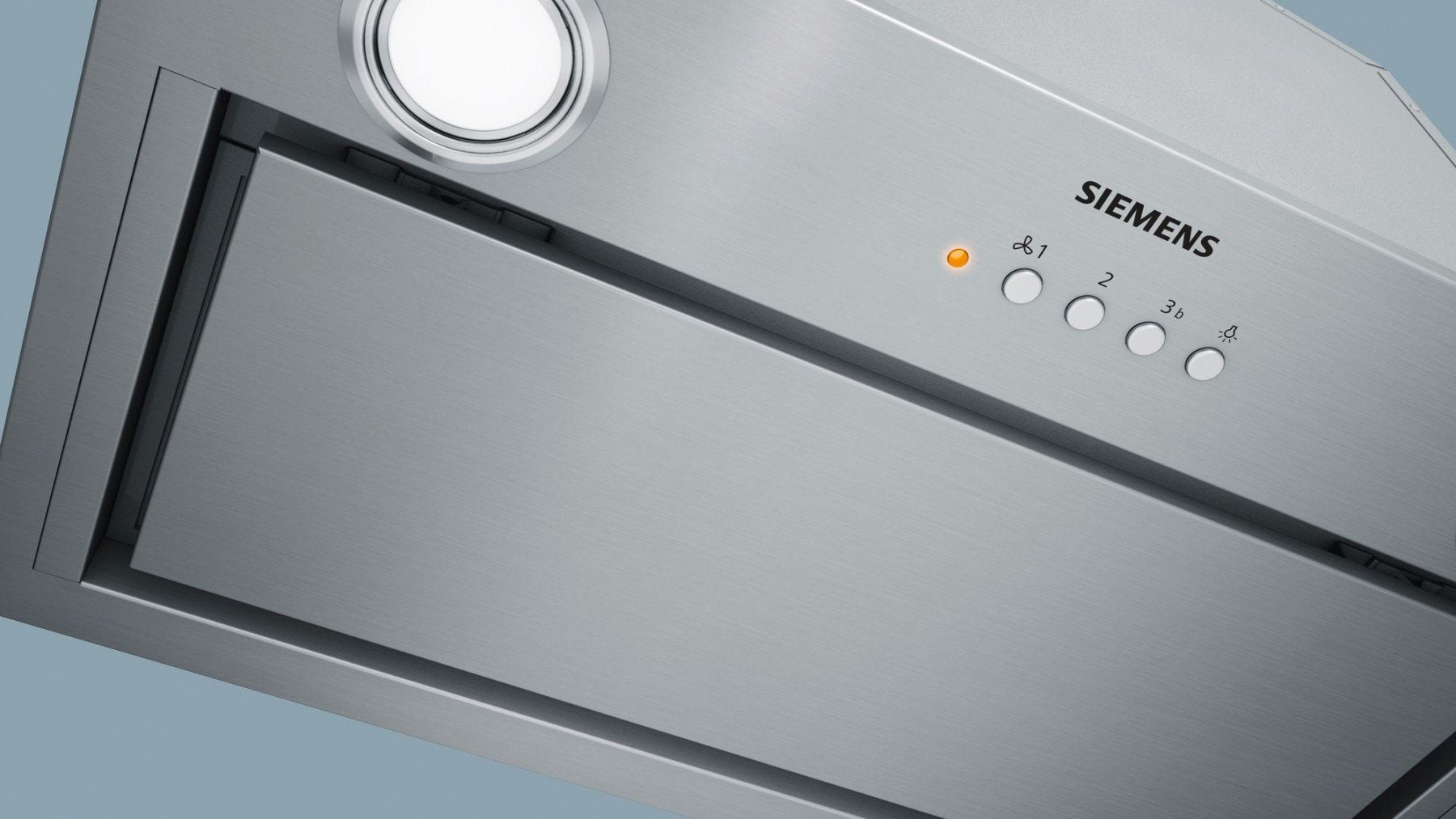

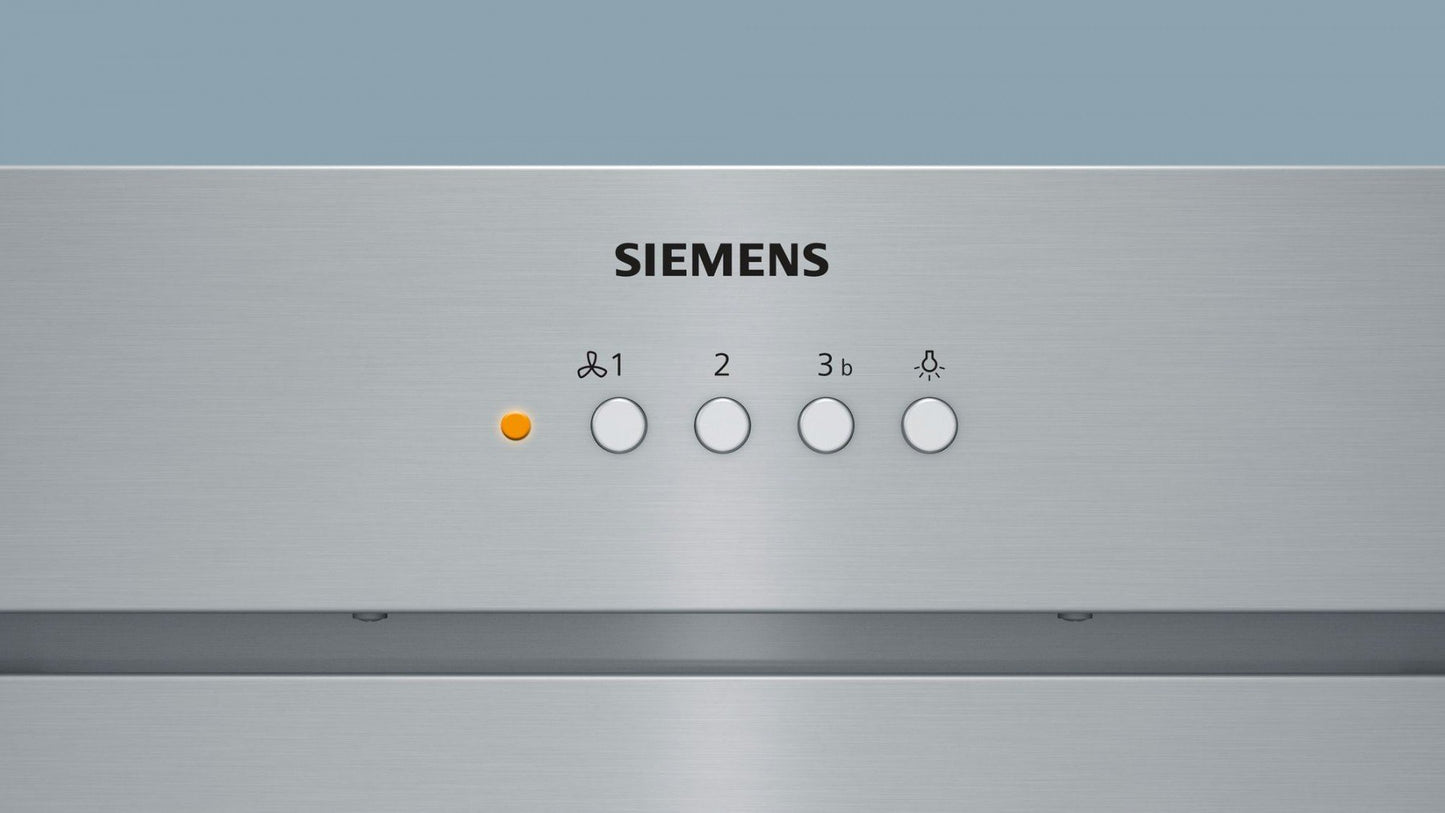

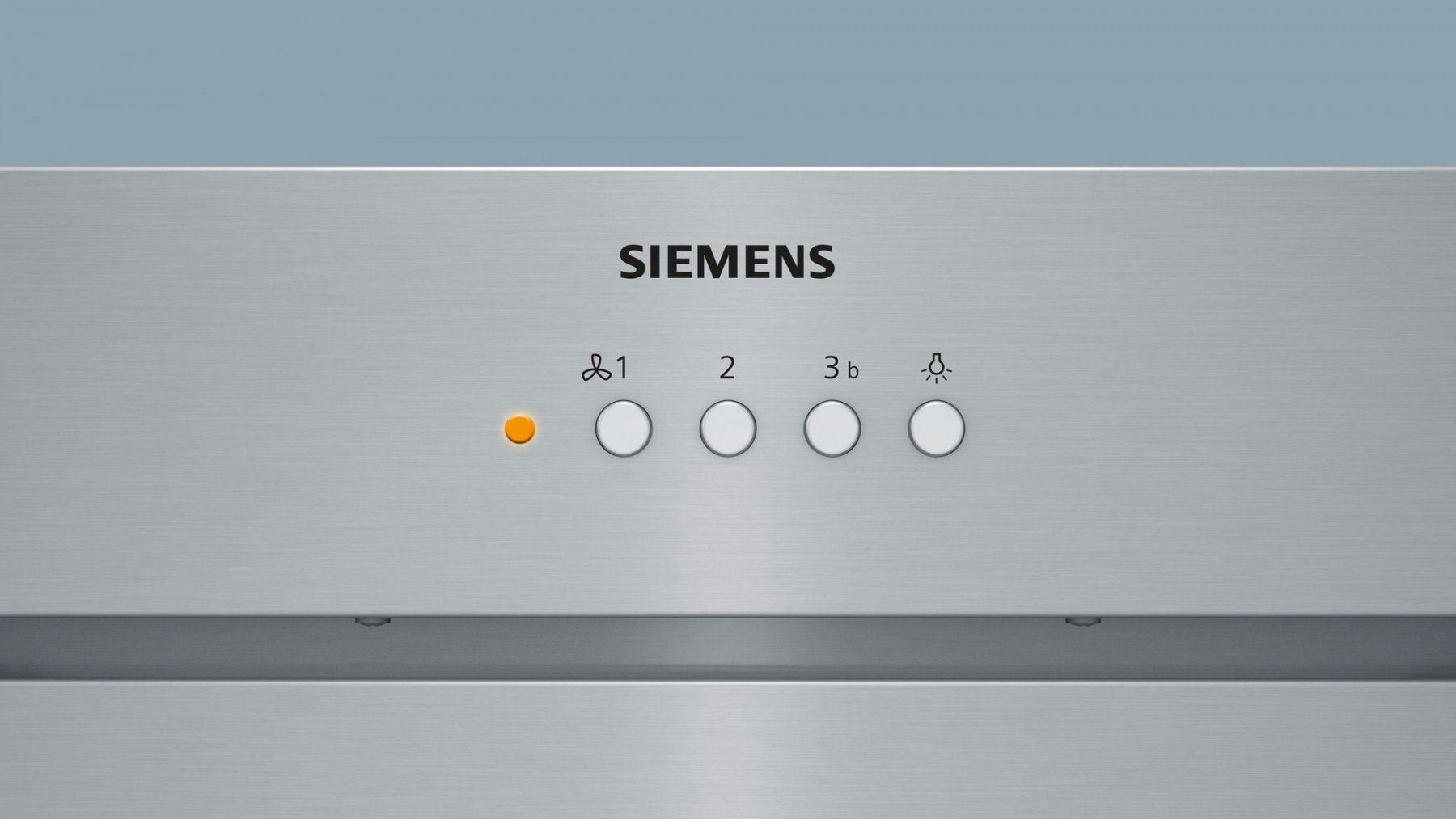

Soft touch button control for extractor speeds and light

2 x 1W LED lights

1 x metal grease filter cassette

Steel filter cover

Rim ventilation

Performance/technical information

Suitable for ducted and re-circulating operation

For recirculated extraction recirculating kit or CleanAir recirculating kit (accessory) needed

Extraction rate according to EN 61591 ø 15 cm:

max. Normal use 560 m³/h

Intensive 610 m³/h

Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:

Max. normal use: 67 dB(A) re 1 pW (53 dB(A) re 20 µPa sound pressure)

Intensive: 70 dB(A) re 1 pW (56 dB(A) re 20 µPa sound pressure)

3 x power levels plus intensive setting

Power rating: 252 W

Automatic intensive revert

Noise max. Normal Level: 67 dB

Extractor hose 120 mm

Dimensions (WxD): 520 x 300 mm

built-in dimensions (HxWxD): 418 x 496 x 264 mm

Dimensions exhaust air (HxWxD): 418-418 x 520 x 300 mm

Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

Light Intensity: 244 lux

Colour Temperature: 4000 K

Average Energy Consumption: 80.1 kWh/year

Energy Efficiency Class: C

Blower Efficiency Class: C

Lighting Efficiency Class: A

Grease Filtering Efficiency Class: D
