iQ500 70cm Canopy Extractor Hood | LB78574GB

Key Features:

• 730 m3/h extraction rate
• 2 x 1W LED lights
• 2 x metal grease filter cassettes
• 3 Stage Speeds + Intensive
• Electronic control via Soft touch button control
• Dimensions: (WxD): 700 x 300 mm

Description:

The powerful canopy cooker hood is concealed above the cooktop.

The 730 m3/h extraction rate supplies clean air when cooking.

The energy-saving LED lighting ensures optimal visibility when cooking.

When required the intensive setting temporarily increases the extraction rate, with automatic revert after 6 min.

At 52 dB the hood is extremely quiet when being used.

Design

70 cm wide

stainless steel

White electronic display

Electronic control via Soft touch button control

Light colour: warm white

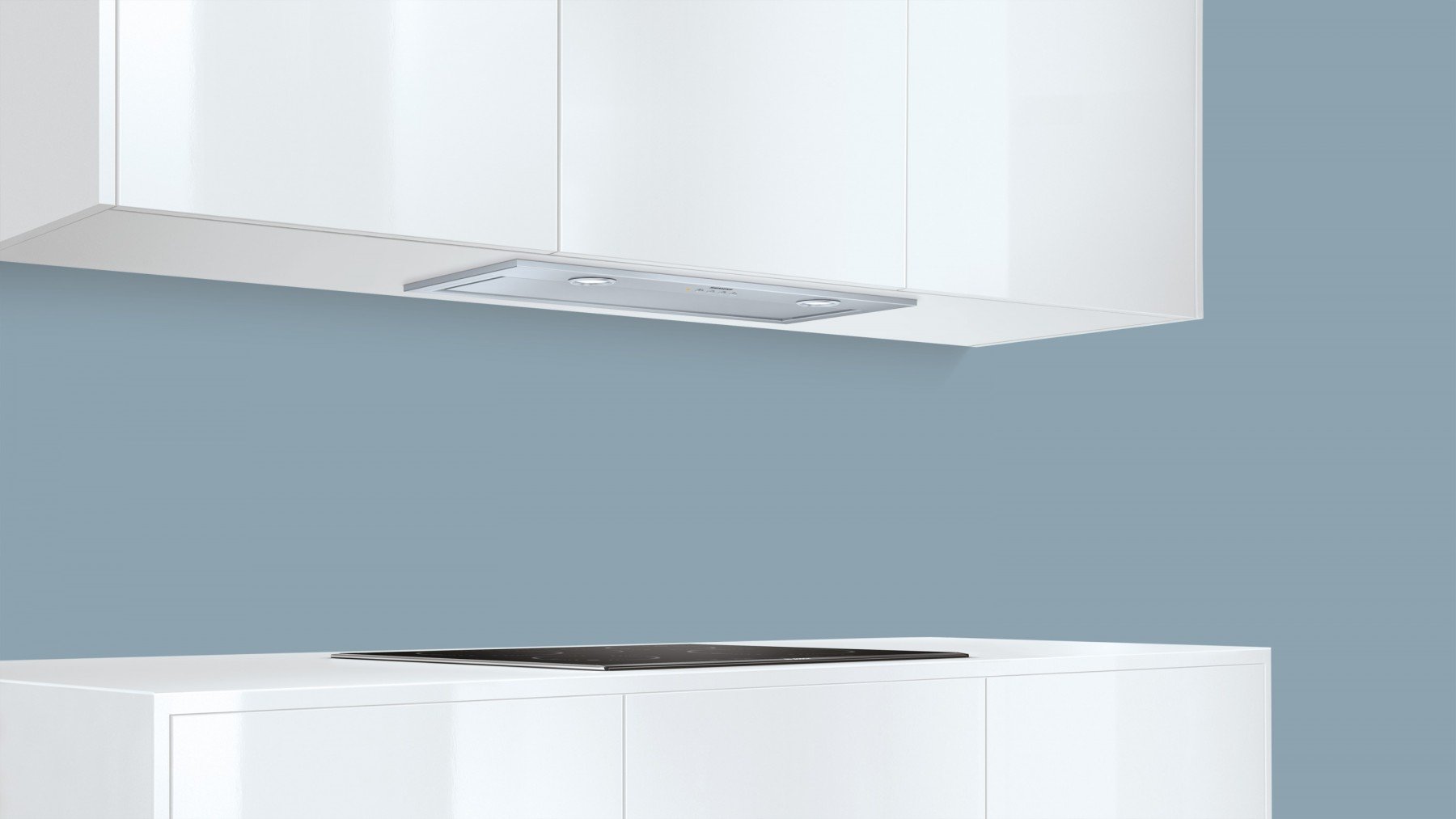

For installation in a kitchen cabinet

Designed for suspended or flush ceiling installation

Key features

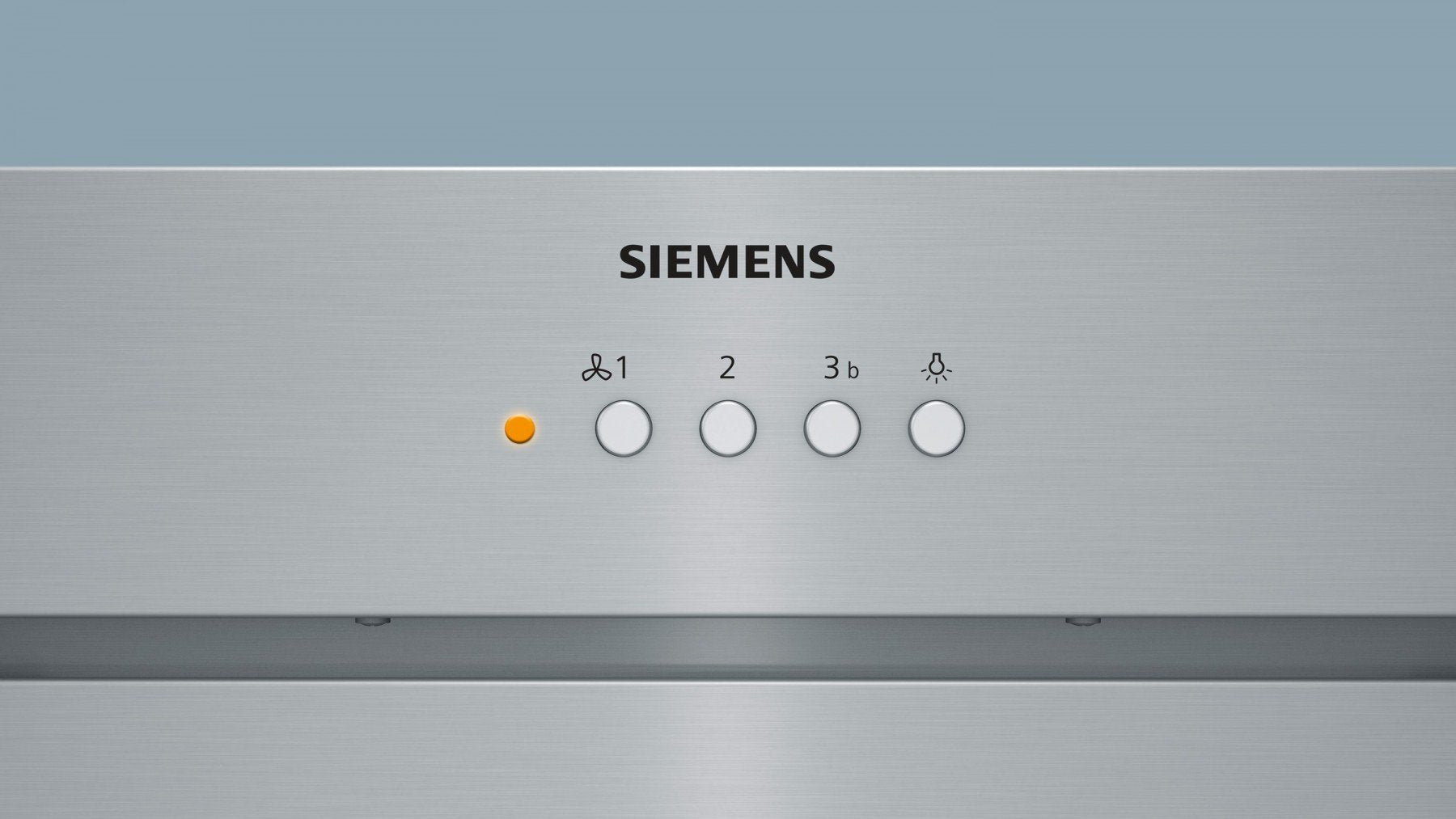

Soft touch button control for extractor speeds and light

2 x 1W LED lights

2 x metal grease filter cassettes

Steel filter cover

Rim ventilation

Performance/technical information

Suitable for ducted and re-circulating operation

For recirculated extraction charcoal filter (accessory) needed

Extraction rate according to EN 61591 ø 15 cm:

max. Normal use 630 m³/h

Intensive 730 m³/h

Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:

Max. normal use: 66 dB(A) re 1 pW (52 dB(A) re 20 µPa sound pressure)

Intensive: 69 dB(A) re 1 pW (55 dB(A) re 20 µPa sound pressure)

3 x power levels plus intensive setting

Power rating: 277 W

Automatic intensive revert

Noise max. Normal Level: 66 dB

Extractor hose 120 mm

Dimensions (WxD): 700 x 300 mm

built-in dimensions (HxWxD): 418 x 676 x 264 mm

Dimensions exhaust air (HxWxD): 418-418 x 700 x 300 mm

Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

Light Intensity: 244 lux

Colour Temperature: 4000 K

Average Energy Consumption: 105.7 kWh/year

Energy Efficiency Class: C

Blower Efficiency Class: C

Lighting Efficiency Class: A

Grease Filtering Efficiency Class: D
