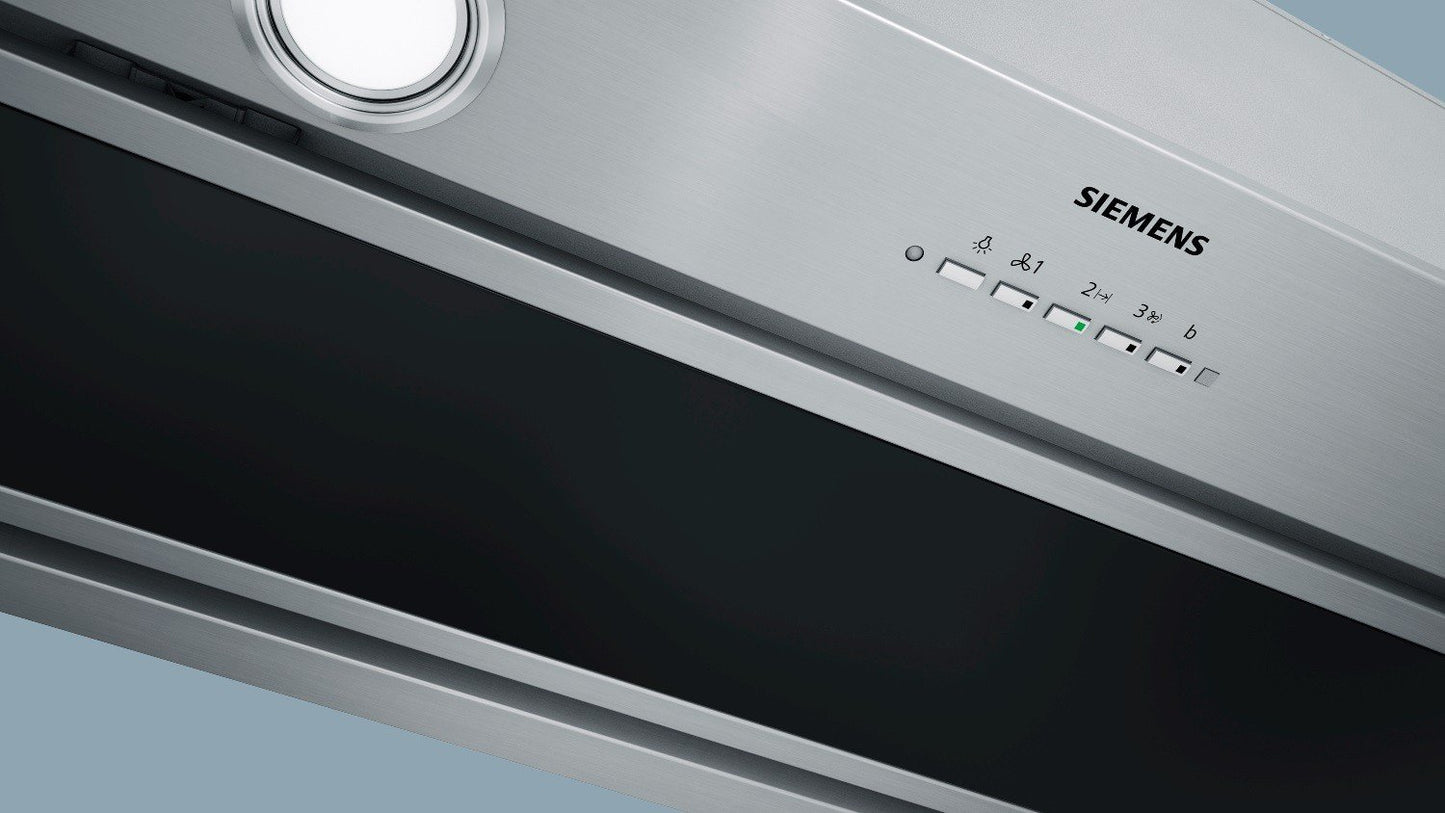

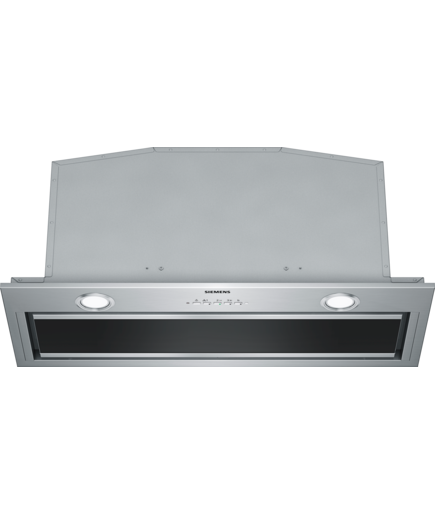

iQ700 70cm Canopy Extractor Hood | LB79585MGB

Key Features:

• 3 Speed + Intensive
• 2 x metal grease filter cassettes
• Electronic control via Soft touch button control
• 770 m3/h extraction rate
• 2 x 1W LED lights with softLight with dimmer function
• 51 dB extremely quiet noise level
• Dimensions (WxD): 700 x 300 mm

Description:

The powerful canopy cooker hood is concealed above the cooktop.

- The 770 m3/h extraction rate supplies clean air when cooking.

- The energy-saving LED lighting ensures optimal visibility when cooking.

- When required the intensive setting temporarily increases the extraction rate, with automatic revert after 6 min.

- At 51 dB the hood is extremely quiet when being used.

DESIGN:

70 cm wide

stainless steel

White electronic display

Electronic control via Soft touch button control

Light colour: warm white

Black glass canopy

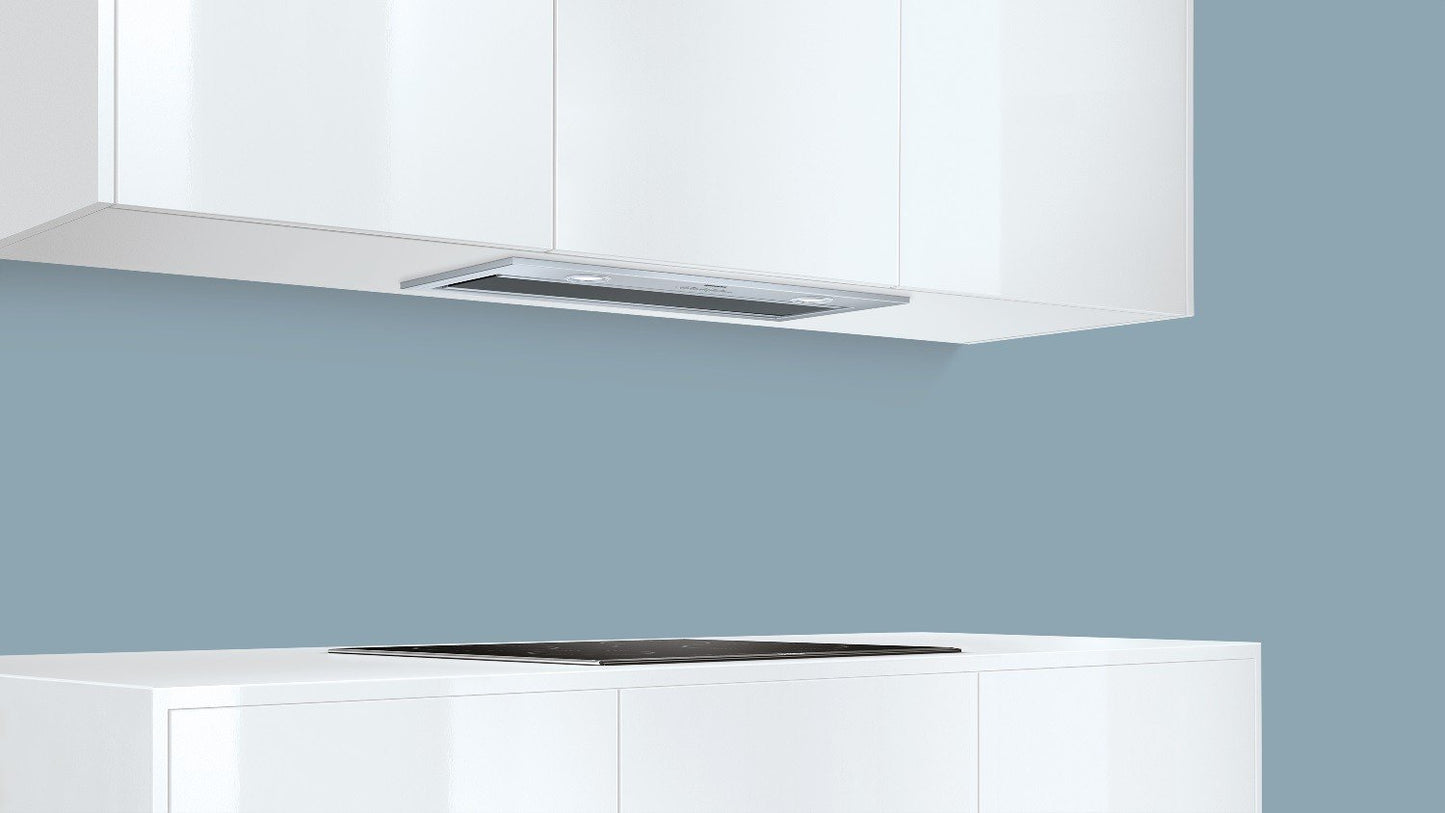

For installation in a kitchen cabinet

Designed for suspended or flush ceiling installation

KEY FEATURES:

Soft touch button control for extractor speeds and light

2 x 1W LED lights

softLight with dimmer function

2 x metal grease filter cassettes

Grease filter saturation indicator

Glass filter cover, Steel filter cover

Interval operation

Rim ventilation

PERFORMANCE/TECH INFO:

Suitable for ducted and re-circulating operation

For recirculated extraction charcoal filter (accessory) needed

Extraction rate according to EN 61591 ø 15 cm:

max. Normal use 570 m³/h

Intensive 770 m³/h

Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:

Max. normal use: 65 dB(A) re 1 pW (51 dB(A) re 20 µPa sound pressure)

Intensive: 72 dB(A) re 1 pW (58 dB(A) re 20 µPa sound pressure)

3 x power levels plus intensive setting

Automatic intensive revert

30 minutes

Noise max. Normal Level: 65 dB

Extractor hose 150 mm

Dimensions (WxD): 700 x 300 mm

built-in dimensions (HxWxD): 418 x 676 x 264 mm

Dimensions exhaust air (HxWxD): 418-418 x 700 x 300 mm

Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

Light Intensity: 244 lux

Colour Temperature: 4000 K

DIMENSIONS:

Type of appliance width (cm) 70 cm

Depth (mm) 300 mm

Air circulation: Convertible

Maximum output recirculating air (m3/h): 320

Sound pressure max. normal: 51db

Type of control setting devices: LED, Low-lift & pushbuttons

Energy efficiency class (2010/30/EC): A
