iQ700 90cm Angled Wall Hood | LC91KWW60B

Key Features:

• 950 m3/h extraction rate
• cookConnect System: Control directly from your Cooktop
• climateControl Sensor monitors
• Home Connect
• emotionLight Pro
• Dimensions exhaust air (HxWxD): 930-1200 x 890 x 499 mm

Description:

Angled extractor hood with outstanding design and high extraction rate for a powerful performance.

Brushless motor: powerful and quiet extraction of steam.

cookConnect System: Control your extractor hood directly from your Cooktop (with matching cooktop).

The climateControl Sensor monitors steam and odours and adjusts the power level automatically.

emotionLight Pro: Adapt your extractor hood to your style.

Home Connect: Remote access to a selection of features of your extractor hood via smartphone or tablet. (only in countries where Home Connect service is available).

Key performance features:

Energy Efficiency Class: A+

Extraction rate according to EN 61591 ø 15 cm:

max. Normal use 530 m³/h

Intensive 950 m³/h

Noise max. Normal Level: 56 dB

Features

climateControl sensor

emotionLight pro: Ambient light

Boost function

cookConnect hob based hood control (with Wi-Fi enabled hob)

Home Connect: Remote Monitoring and Control (only in countries where Home Connect service is available)

3 power levels and 2 intensive settings

softLight with dimmer function

softLight with dimmer function

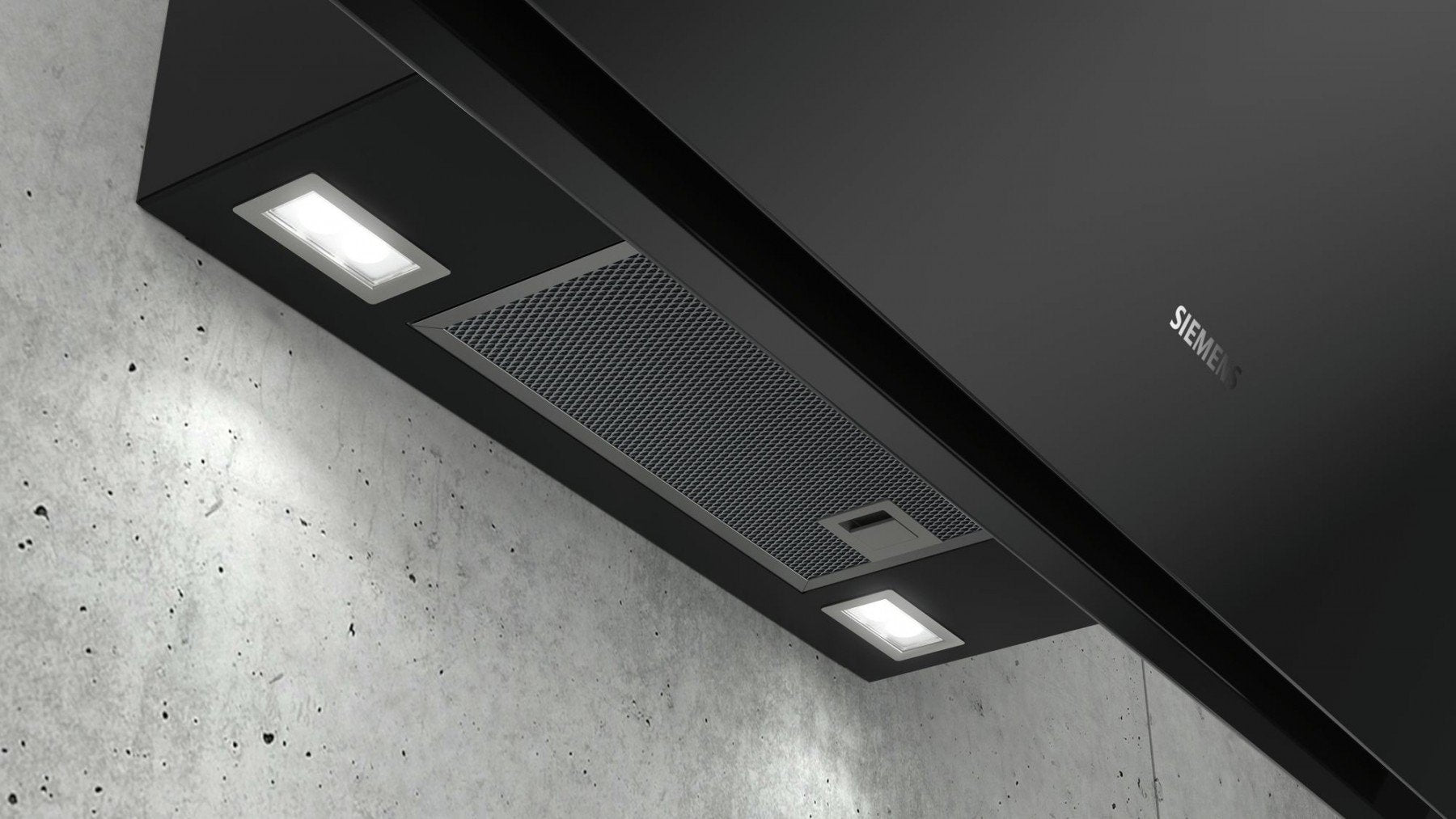

2 x 3W LED

Colour Temperature: 3500 K Efficient BLDC motor

Twin channel high performance fan motor

Automatic after running (10 minutes)

Automatic intensive revert (6mins)

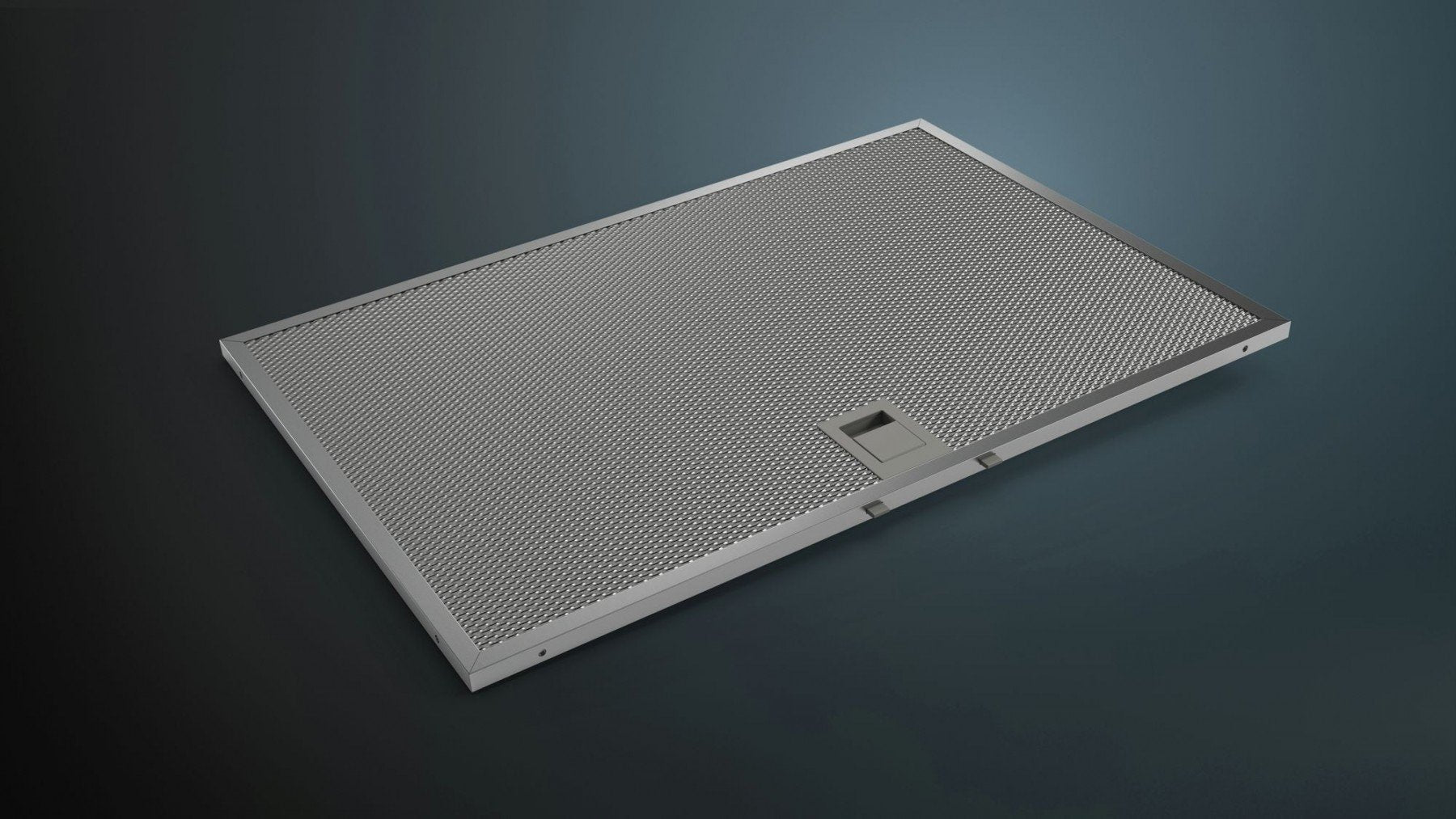

2 x metal grease filter cassettes

Grease and charcoal filter saturation indicators

easy to clean Inner frame

For wall mounted installation

Rim ventilation

Angled design

Chimney hood

Touch control for extractor speeds and light

Electronic control

Performance/technical information

Suitable for ducted and re-circulating operation

In recirculation operation chimless use possible

For recirculated extraction a recirculating kit or a CleanAir recurculation kit (accessory) is needed

Easy installation system

Max. extraction rate: 950 m3/h

Extraction rate according to EN 61591 ø 15 cm:

max. Normal use 530 m³/h

Intensive 950 m³/h

Extraction rate in recirculation mode:

Max. normal use: 450 m³/h

Intensive: 630 m³/h

Noise max. Normal Level: 56 dB

Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:

Max. normal use: 56 dB(A) re 1 pW (42 dB(A) re 20 µPa sound pressure)

Intensive: 69 dB(A) re 1 pW (55 dB(A) re 20 µPa sound pressure)

Noise levels in recirculation mode:

Max. normal use: 69 dB(A) re 1 pW (56 dB(A) re 20 µPa sound pressure)

Intensive: 78 dB(A) re 1 pW (64 dB(A) re 20 µPa sound pressure)

Power rating: 270 W

Light Intensity: 460 lux

Colour Temperature: 3500 K

Electrical cable length 1.3 m

Diameter pipe Ø 150 mm (Ø 120 mm enclosed)

Dimensions exhaust air (HxWxD): 930-1200 x 890 x 499 mm

Dimensions recirculating, chimney (HxWxD): 990-1260 x 890 x 499 mm

Dimensions recirculating, chimless (HxWxD): 454 mm x 890 x 499 mm

Dimensions recirculating with CleanAir module (HxWxD):

1120 x 890 x 499 mm - mounting with outer chimney

1190-1460 x 890 x 499 mm - mounting with telescopic chimney

Energy Efficiency Class: A+

Blower Efficiency Class: A

Lighting Efficiency Class: A

Grease Filtering Efficiency Class: B

Average Energy Consumption: 30.1 kWh/year
