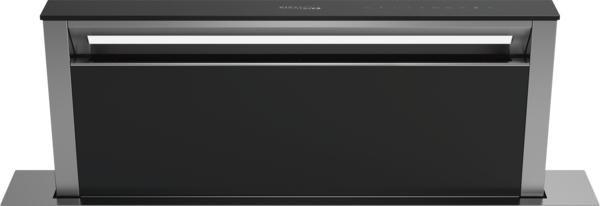

iQ700 90cm Downdraft Hood | LD97DBM60B

Key Features:

• Energy Efficiency Class: A
• 3 Power levels and 2 intensive settings
• max. Normal use 530 m³/h
• Intensive 750 m³/h
• touchControl
• 1 x 7W LED-module
• 2 metal grease filter cassettes
• Dimensions exhaust air (HxWxD): 738-1038 x 912 x 268 m

Description:

Technical Details

Energy Efficiency Class: A

max. Normal use 530 m³/h

Intensive 750 m³/h

Noise max. Normal Level: 62 dB*

Electronic control

3 Power levels and 2 intensive settings

TouchControl for extractor speeds and light

1 x 7W LED-module

Colour Temperature: 3500 K

Automatic after running (10 minutes)

2x metal grease filter cassettes

Grease and charcoal filter saturation indicators

Black

Worktop ventilation

For installation in a kitchen cabinet

Suitable for regular or flush installation in worktops.

Extension height 300 mm

Suitable for ducted and re-circulating operation

In recirculation mode no combination with gas hobs allowed.

Max. extraction rate: 750 m3/h

Extraction rate in recirculation mode:

Max. normal use: 460 m³/h

Intensive: 510 m³/h

Noise max. Normal Level: 62 dB

Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:

Power rating: 317 W

Light Intensity: 203 lux

Colour Temperature: 3500 K

Electrical cable length 1.5 m

Diameter pipe Ø 150 mm (Ø 150 mm enclosed)

Dimensions exhaust air (HxWxD): 738-1038 x 912 x 268 mm

Dimensions recirculating, chimney (HxWxD): 738-1038 x 912 x 268 mm

Blower Efficiency Class: A

Lighting Efficiency Class: A

Grease Filtering Efficiency Class: D
